Binder 09-3441-578-05 Male 5 Pin with Solder and M16-x 1.5 Fixing Thread

Binder
Order Code:

55-0444

Brand: Binder MPN: 09-3441-578-05 EAN-13: 2050000993275
Qty Unit Price (Ex VAT)
1+ £6.82
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
44 available to back orderBack-order availability date - 09/01/2026

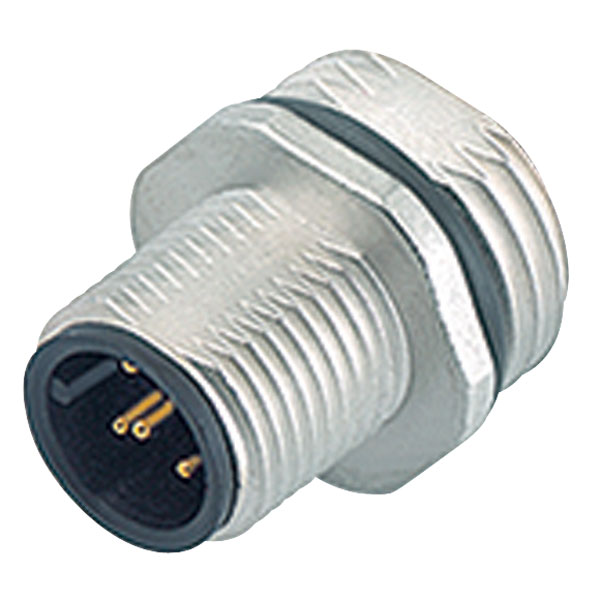

A male 5-pin screw connector with M16 x 1.5 fixing thread and solder termination.
  • Number of poles: 5
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,25 mm²
  • Wire gauge (AWG): 24
  • Degree of protection: IP 68
  • Mechanical operation: >100 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 3
  • Overvoltage category: II
  • Material group: II
  • Rated current (40°C): 4 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Au (gold)
  • Material of contact body: PA
  • Material of housing: zinc diecasting, nickel plated
Number of Contacts 5
Current Rating 4A
Gender Male
IP Rating IP68
Contact Material Brass
Contact Plating Gold
Nominal Voltage 125V
Termination Solder
