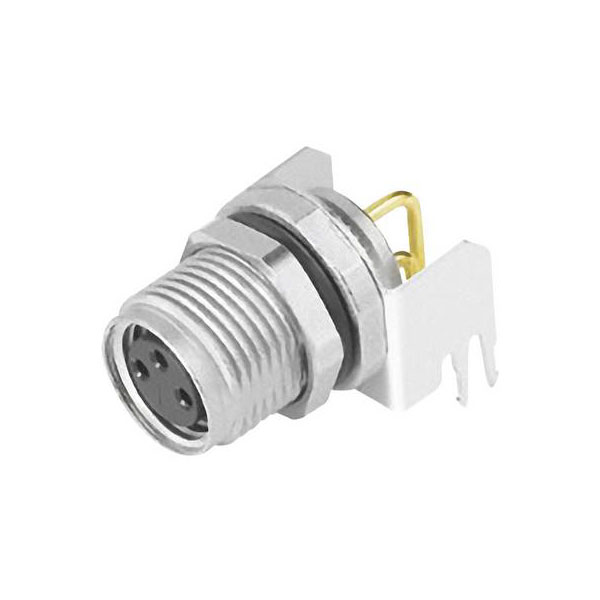

Binder 09 3418 82 03 Female 3 Pin Front Fastening Solder Tag Terminal

MPN: 09 3418 82 03
Brand: Binder
EAN-13: 2050001660596
Order Code: 55-0789

RoHS Compliant
Free UK shipping available

View Full Product Range (6)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£12.93	£12.85

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Available to back orderBack order, lead time 5 weeks

Product Range

Number of poles: 3
Termination: dip solder
Degree of protection: IP 67
Mechanical operation: >100 mating cycles
Upper temperature: +85 °C
Lower temperature: -40 °C
Rated voltage: 60 V
Rated impulse voltage: 800 V
Pollution degree: 3
Overvoltage category: II
Material group: II
Rated current (40°C): 4 A
Volume resistivity: ≤ 3 mΩ
Material of contact: CuSn (bronze)
Contact plating: Au (gold)
Material of contact body: PA (UL 94 HB)
Material of housing: zinc diecasting, nickel plated

Type	Sensor/actuator built-in connector
Number of Contacts	3
Connector Size	20 mm dia
Gender	Female
IP Rating	IP67
Maximum Temperature	+85°C
Min. temperature	-40°C
