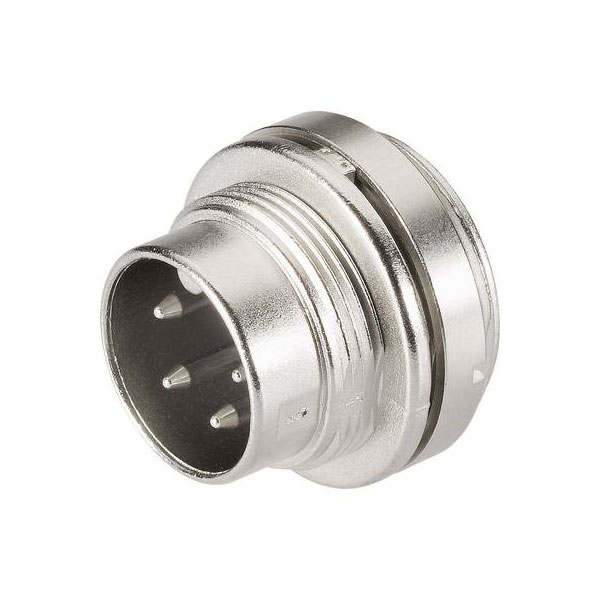

Binder 09-0315-00-05 Male Panel Mount Miniature 5 Pin with Outlet

MPN: 09-0315-00-05
Brand: Binder
EAN-13: 4016138074321
Order Code: 55-0216
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (14)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£6.74
10+	£6.47
50+	£6.08

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 134 in stock

Product Details
Product Range
Data Sheets

A 5-pin male M16 panel mount miniature connector.

Connector locking system: Screw
Degree of protection: IP 40
Lower temperature: -40 °C
Material group: III
Material of contact body: PBT (UL 94 V-0)
Material of housing: zinc diecasting, nickel plated
Mechanical operation: >500 mating cycles
Overvoltage category: I
Pollution degree: 1
Termination: solder
Upper temperature: +85 °C

Type	Panel Mount Male
Number of Contacts	5
Connector Size	20 mm dia
Gender	Male
Contact Material	Brass
Contact Plating	Silver
Current Rating	6A
IP Rating	IP40
Maximum Temperature	+90°C
Min. temperature	-40°C
Mounting Type	Panel
Nominal Voltage	250V
Number of pins	5
Termination	Solder
