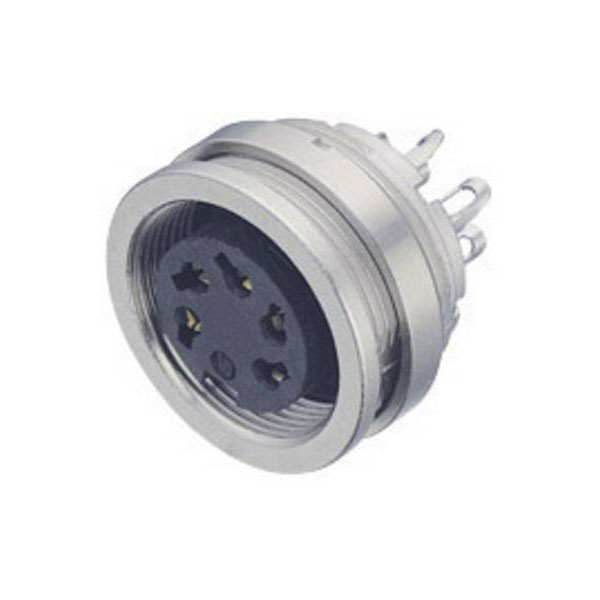

Image Representative of Range

Binder 09-0174-00-08 Female 8 Pin Panel Mount Screw with Solder Terminal

MPN: 09-0174-00-08
Brand: Binder
EAN-13: 2050000421051
Order Code: 55-0993
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£13.08
10+	£11.95
50+	£11.82

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 13 in stock

Product Details
Product Range
Data Sheets
Quick Quote

A female 8-pin IP67 miniature panel mount M16 screw connector with solder termination.

Number of poles: 8
Connector locking system: Screw
Termination: solder
Wire gauge (mm): 0,75 mm²
Wire gauge (AWG): 20
Degree of protection: IP 67
Mechanical operation: >500 mating cycles
Upper temperature: +95 °C
Lower temperature: -40 °C
Rated voltage: 60 V
Rated impulse voltage: 500 V
Pollution degree: 1
Overvoltage category: I
Material group: III
Rated current (40°C): 5 A
Volume resistivity: ≤ 5 mΩ
Material of contact: CuSn (bronze)
Contact plating: Ag (silver)
Material of contact body: PBT (UL 94 V-0)
Material of housing: zinc diecasting, nickel plated

Type	Panel Mount Female
Number of Contacts	8
Connector Size	20 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Silver
Current Rating	5A
IP Rating	IP67
Maximum Temperature	+125°C
Min. temperature	-55°C
Mounting Type	Panel
Nominal Voltage	60V
Number of pins	8
Termination	Solder
