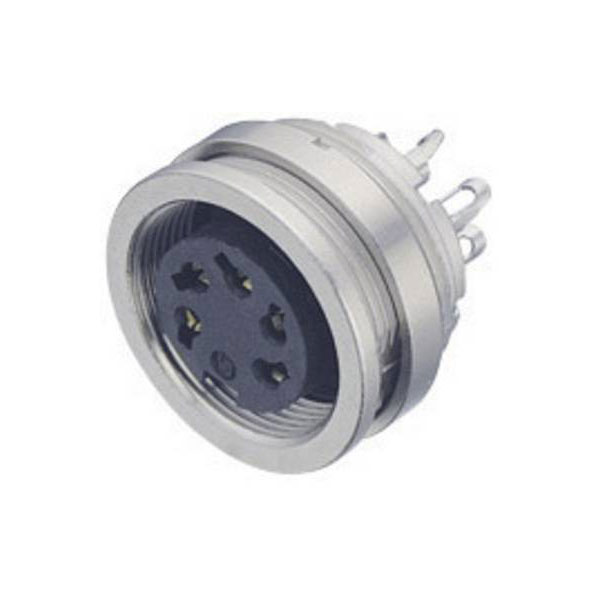

Binder 09-0128-00-07 Female 7 Pin Panel Mount Screw with Solder Terminal

A female 7-pin IP67 miniature panel mount M16 screw connector with solder termination.

• Number of poles: 7
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +95 °C
• Lower temperature: -40 °C
• Rated voltage: 125 V
• Rated impulse voltage: 800 V
• Pollution degree: 1
• Overvoltage category: I
• Material group: III
• Rated current (40°C): 5 A
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: zinc diecasting, nickel plated

Type	Panel Mount Female
Number of Contacts	7
Connector Size	20 mm dia
Gender	Female
Contact Material	CuSn
Contact Plating	Silver
Current Rating	5A
IP Rating	IP67
Maximum Temperature	+125°C
Min. temperature	-55°C
Mounting Type	Panel
Nominal Voltage	125V
Number of pins	7
Termination	Solder
