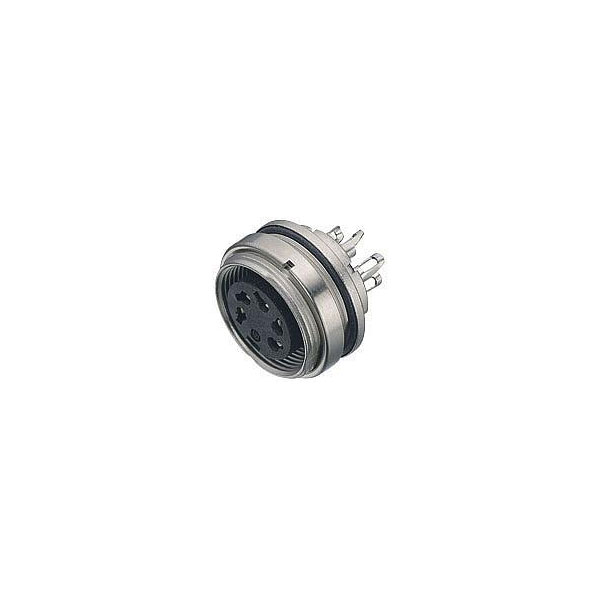

Binder 09-0108 80-03 Female 3 Pin DIN Panel Mount Screw with Solder Terminal

A female 3-pin DIN IP67 miniature front fastening panel mount M16 screw connector with solder termination.

• Number of poles: 3
• Connector locking system: Screw
• Termination: solder
• Wire gauge (mm): 0,75 mm²
• Wire gauge (AWG): 20
• Degree of protection: IP 67
• Mechanical operation: >500 mating cycles
• Upper temperature: +95 °C
• Lower temperature: -40 °C
• Rated voltage: 250 V
• Rated impulse voltage: 1500 V
• Pollution degree: 1
• Overvoltage category: I
• Material group: III
• Rated current (40°C): 7 A
• Volume resistivity: ≤ 5 mΩ
• Material of contact: CuSn (bronze)
• Contact plating: Ag (silver)
• Material of contact body: PBT (UL 94 V-0)
• Material of housing: zinc diecasting, nickel plated

Contact Finish	CuSn
Contact Plating	Silver
Current Rating	7A
Gender	Female
IP Rating	IP67
Mounting Type	Panel
Nominal Voltage	250V
Number of Ways	3
Termination Method	Solder
