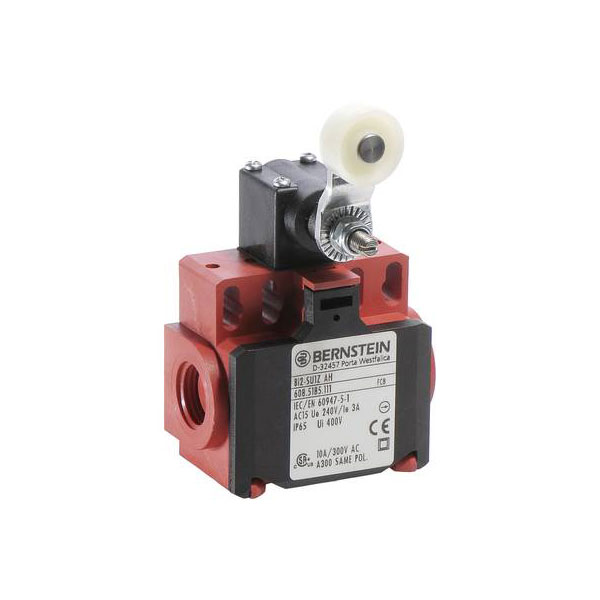

The Bernstein BI2-SU1Z AH limit switch is a versatile component designed for industrial applications, featuring a pivot lever mechanism. It operates at 240 V AC with a current rating of 10 A and offers IP65 protection. Typical uses include position control and safety interlocking in machinery.
| Type |
Limit switch |
| Alignment of the control element |
Other |
| Ambient temperature during operating |
-30 - 80°C |
| Coating housing |
N/A |
| Connection |
Screws |
| Construction type housing |
Other |
| Contact opening |
Quick-action switching element |
| Degree of protection (IP) |
IP65 |
| Degree of protection (NEMA) |
4X |
| Depth |
32mm |
| Diameter sensor |
N/Amm |
| Dim |
(W x H x D) 58 x 50 x 32 mm (Casing) |
| Dim. (add. text) |
Casing |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
true |
| Functions |
momentary |
| Height |
50mm |
| Height of sensor |
48mm |
| Housing Material |
Plastic |
| IP Rating |
IP65 |
| Length of sensor |
87mm |
| Material |
Plastic |
| Misc Attribute |
BI2-SU1Z AH |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of safety auxiliary contacts |
1 |
| Operation type |
Pivot lever |
| Output electronic |
false |
| Rated operation current Ie at AC-15, 125 V |
N/AA |
| Rated operation current Ie at AC-15, 230 V |
3A |
| Rated operation current Ie at AC-15, 24 V |
N/AA |
| Rated operation current Ie at DC-13, 125 V |
N/AA |
| Rated operation current Ie at DC-13, 230 V |
N/AA |
| Rated operation current Ie at DC-13, 24 V |
N/AA |
| Suitable for safety functions |
true |
| Switching current (max.) |
10A |
| Switching function |
Quick-break switch |
| Switching function latching |
false |
| Switching Voltage |
240V AC |
| Thread Size |
M16 |
| Type of control element |
Rotary lever |
| Type of electric connection |
Cable entry metrical |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Width |
58mm |
| Width sensor |
58mm |
| With status indication |
false |
