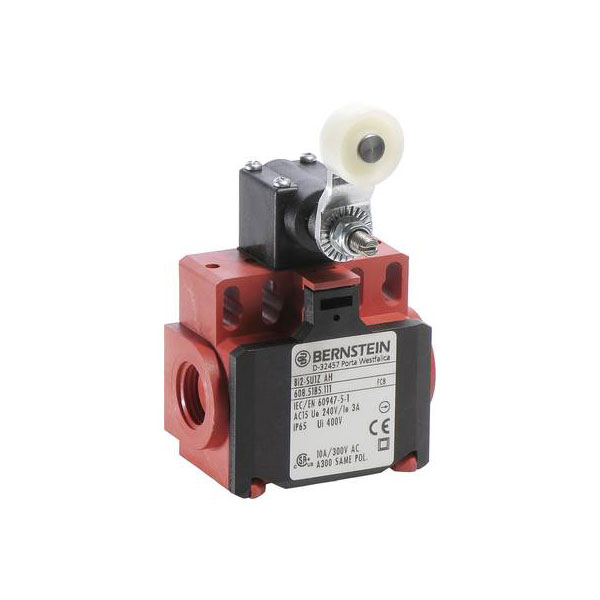

Bernstein Ltd. 6085135104 Limit Switch 240V AC 10A Pivot Lever IP65 1piece

The Bernstein limit switch 6085135104 BI2-U1Z AH, made by Bernstein AG, operates at 240 V AC and 10 A with a pivot lever mechanism. It features a momentary action and an IP65 rating for dust and water resistance. This switch is commonly used in industrial applications for position monitoring and control in machinery.

Type	Limit switch
Alignment of the control element	Other
Ambient temperature during operating	-30 - 80°C
Coating housing	N/A
Connection	Screws
Construction type housing	Other
Contact opening	Slow-acting switching element
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
Depth	32mm
Diameter sensor	N/Amm
Dim	(W x H x D) 58 x 50 x 32 mm (Casing)
Dim. (add. text)	Casing
Explosion safety category for dust	None
Explosion safety category for gas	None
Forced opening	true
Functions	momentary
Height	50mm
Height of sensor	49mm
Housing Material	Plastic
IP Rating	IP65
Length of sensor	96mm
Material	Plastic
Misc Attribute	BI2-U1Z AH
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Operation type	Pivot lever
Output electronic	false
Rated operation current Ie at AC-15, 125 V	N/AA
Rated operation current Ie at AC-15, 230 V	3A
Rated operation current Ie at AC-15, 24 V	N/AA
Rated operation current Ie at DC-13, 125 V	N/AA
Rated operation current Ie at DC-13, 230 V	N/AA
Rated operation current Ie at DC-13, 24 V	N/AA
Suitable for safety functions	true
Switching current (max.)	10A
Switching function	Slow-action switch
Switching function latching	false
Switching Voltage	240V AC
Thread Size	M16
Type of control element	Rotary lever
Type of electric connection	Cable entry metrical
Type of interface	None
Type of interface for safety communication	None
Width	58mm
Width sensor	58mm
With status indication	false
