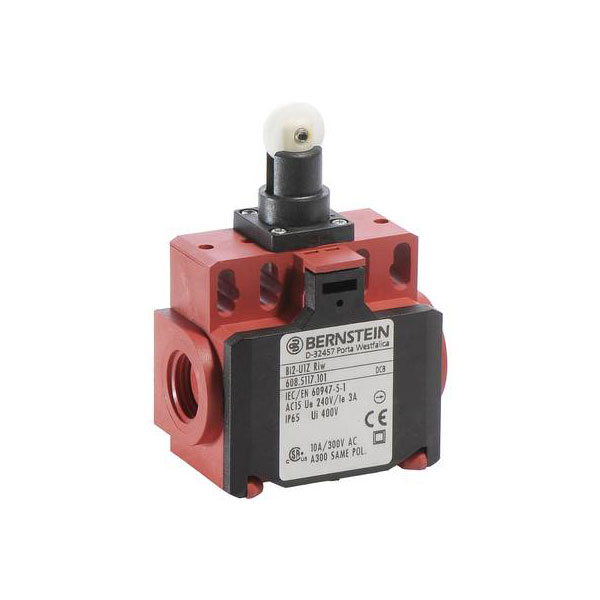

Bernstein Ltd. 6085117101 Limit Switch 240V 10A Lever IP65 Momentary

The Bernstein AG limit switch, model 6085117101 BI2-U1Z RIW, operates at 240 V AC with a 10 A current capacity. It features a lever and is rated IP65, indicating dust tightness and protection against water jets. Typically used for position detection in industrial automation and machinery applications.

Type	Limit switch
Alignment of the control element	Roller cam straight
Ambient temperature during operating	-30 - 80°C
Coating housing	N/A
Connection	Screws
Construction type housing	Other
Contact opening	Slow-acting switching element
Degree of protection (IP)	IP65
Degree of protection (NEMA)	4X
Depth	32mm
Diameter sensor	N/Amm
Dim	(W x H x D) 58 x 50 x 32 mm (Casing)
Dim. (add. text)	Casing
Explosion safety category for dust	None
Explosion safety category for gas	None
Forced opening	true
Functions	momentary
Height	50mm
Height of sensor	32mm
Housing Material	Plastic
IP Rating	IP65
Length of sensor	73mm
Material	Plastic
Misc Attribute	BI2-U1Z RIW
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Operation type	Lever
Output electronic	false
Rated operation current Ie at AC-15, 125 V	N/AA
Rated operation current Ie at AC-15, 230 V	3A
Rated operation current Ie at AC-15, 24 V	N/AA
Rated operation current Ie at DC-13, 125 V	N/AA
Rated operation current Ie at DC-13, 230 V	N/AA
Rated operation current Ie at DC-13, 24 V	N/AA
Suitable for safety functions	true
Switching current (max.)	10A
Switching function	Slow-action switch
Switching function latching	false
Switching Voltage	240V AC
Thread Size	M16
Type of control element	Roller cam
Type of electric connection	Cable entry metrical
Type of interface	None
Type of interface for safety communication	None
Width	58mm
Width sensor	58mm
With status indication	false
