Bergquist HF625-AC-104 Pk10 Flexible Hi-flow 625 TO3p

Name: Bergquist HF625-AC-104 Pk10 Flexible Hi-flow 625 TO3p
Brand: Bergquist
Price: 5.28 GBP
Availability: OutOfStock

Order Code:

38-0402

( Write a review )

Brand: Bergquist MPN: HF625-AC-104

RoHS Compliant
Country of Origin:
Free UK shipping available

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£5.28
10+	£4.72
50+	£4.02

Get a quote for large quantities here

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

Standard factory lead time 14 daysContact us for lead times on larger quantities

Out of StockBack-order availability date - 11/10/2023

Product Details
Data Sheets
Quick Quote

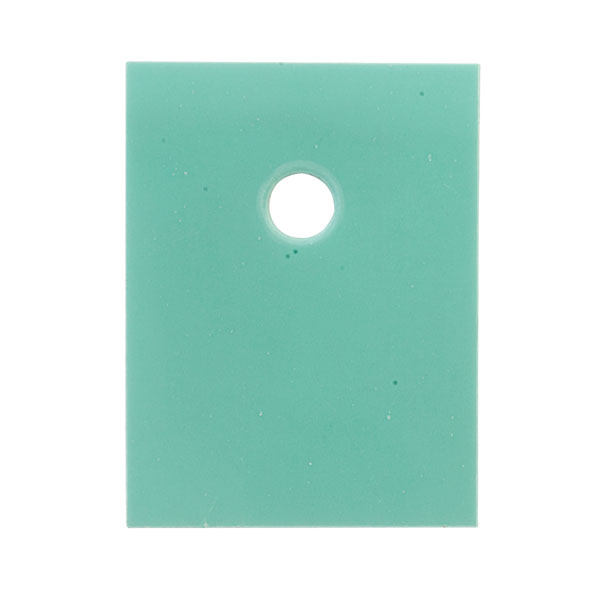

Flexible Hi-Flow is a phase-change material on an insulating substrate designed specifically to replace grease as a thermal interface. At +65°C Hi-Flow changes from a solid and flows (phase-change temperature) thereby assuring total wet-out of the interface. The thixotropic characteristics of the material prevent it from flowing out of the interface when mounted vertically. The result is a thermal interface without the mess and other problems associated with grease.

0.4W/m-K Thermal conductivity
Supplied in packs of 10 pads to suit TO-3P devices

Breakdown Voltage	4000V
Material	Phase change compound / PEN film
Package/Case	TO-3P
Temperature Range	-30 to +150°C
Thermal Conductivity	0.5W/m-K
Thermal Resistance	0.25°C/W
