Barthelme 50017531 LEDlight Flex ControlLED White 16.8cm/24 LEDs 24V DC

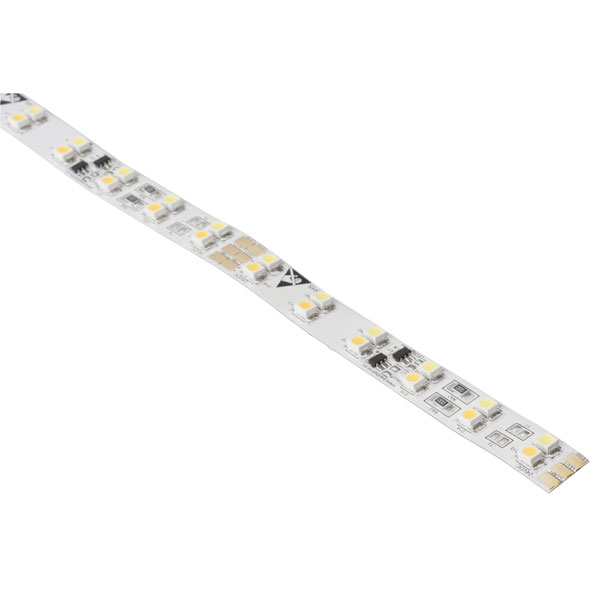

LED Strip with parallel mounting with cold and warm white SMD LEDs. It is possible to control the temperature of colours easily between 2600 - 6300 K by the 2 channel installation of the LED strip related to the CHROMOFLEX controlled white. Pitch is 8.4 cm. The operating voltage is 24 V/DC and is obtained via soldering of soldering pads.

• Colour: White
• Connection (components): Soldering
• Dimensions, length: 168mm
• Dimensions, width: 10mm
• LED number per unit: 12
• LED warning light features: pliable, self-adhesive
• Light bulb component type (category): LED strip
• Luminous flux (phi): 140 lm
• Max. colour temperature: 6300 K
• Min. colour temperature: 2600 K
• No. of LEDs: 24
• Operating current: 82.5 mA
• Operating voltage (num.): 24 Vdc
• Operational current per unit: 41.25 mA
• Power consumption: 2 W
• Power consumption per unit: 1 W
• Radiation angle: 120 °
• Specification: 16.8 cm / 12 LEDs
• Type: 50017531
• Unit length: 84mm

Type	Luminaire
Colour	White
Dimensions	(W) 10mm
Length	168mm
Min. Colour Temperature	2600 K
Operational current per unit	41.25ma
Power Consumption	2W
Supply Voltage (DC)	24V
Viewing Angle	120°
