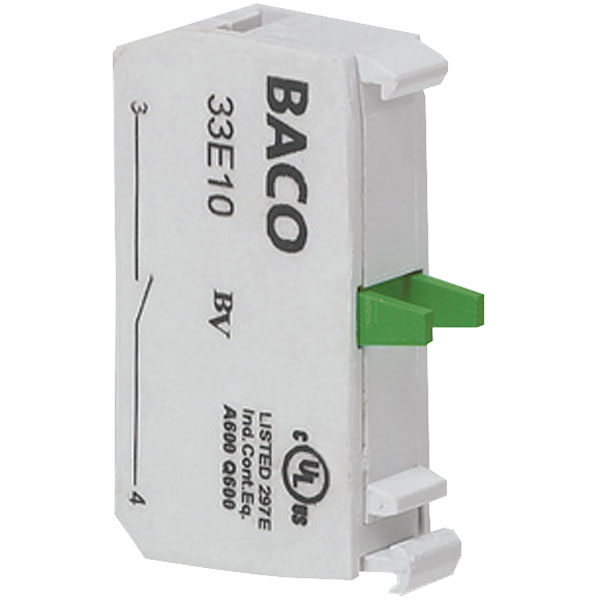

BACO Contact Element 33E10Y7 1 x Off/On Screw terminals Max 600V Max 10A

This On/Off contact elements with screw terminals is designed for use with a range of actuators from BACO. The contact element is connected via an adaptor to the front element.

• Connection Screw terminals
• Contact material Gold plated contacts
• Dimensions 21.5(L) x 9.9(W) x 39.4(H)mm
• Height 39.4mm
• Product Specifications Approval EN, UL, Bureau Veritas, BBJ
• Specification 1 x Off/On
• Switching current Max 10A
• Switching voltage Max 600V
• Type 33E10Y7

It is possible for the switch elements 33E01 and/or 33E10 to snap in 2 levels without any additional adapter.

Type	Contact element
Action	1x off/on
Contact Configuration	Screw terminals
Illumination Colour(s)	N/A
Illumination Type	N/A
Max. Current	10A
