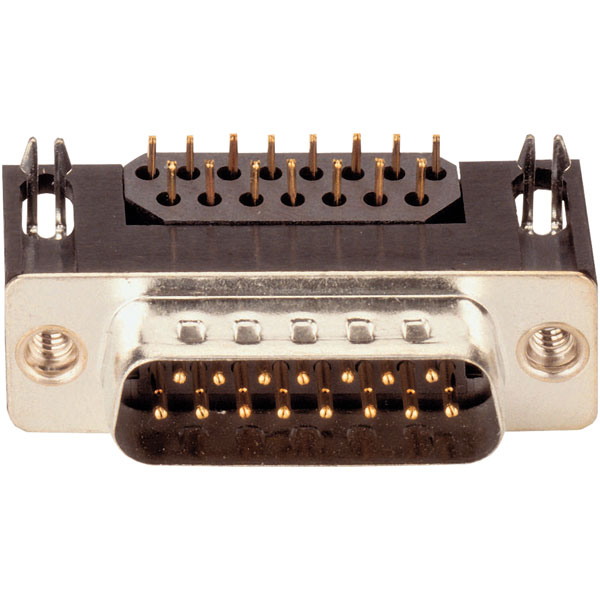

Assmann WSW A-DS 15 A/KG-F D-Sub Male 15 Way 2.54mm Pitch Shielded

MPN: A-DS 15 A/KG-F
Brand: Assmann WSW
EAN-13: 2050000254819
Order Code: 50-1548

Discontinued

Product Details
Product Range
Data Sheets

Assmann WSW A-D S 15 A KG F D-sub male connector with ferrite plate THT 15-way 2.54mm pitch. Current rating 3A 3.20mm right angle pins, gold plated contacts and PBT, UL94V-0 insulation. With screw holes.

Product group: D-sub covers
Style: Metallized
Pin count: 15
Material: Zinc-die-cast
Cable exit: side cable exit 45°
Screws: knurled screws
Manufacturer's part no. A-DS 15 A/KG-F

Type	Male
Plug / Socket	Plug
Mounting Type	Solder
No. of Ways	15
Mounting Direction	Straight
Connection Angle	90°
Plating Material	Gold plated
No. of Rows	2
Number of pins	15
Pitch	2.54mm
