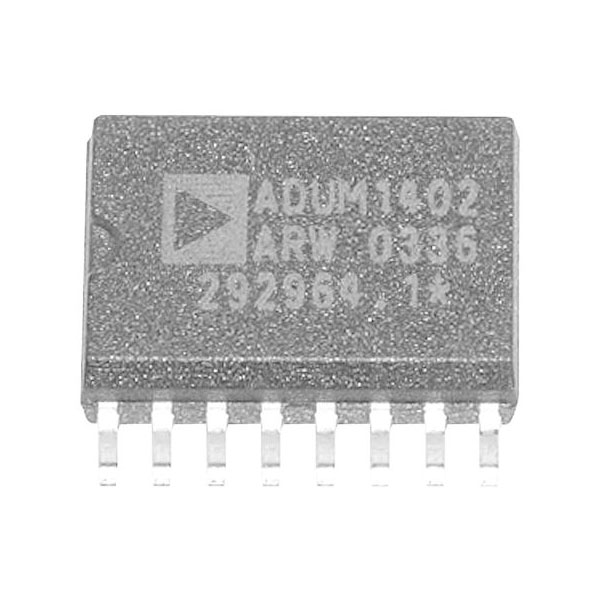

Analog Devices ADUM1402ARWZ Digital isolator 4-channel 100Mbps tube

Analog Devices ADUM1402ARWZ is a four-channel digital isolator capable of data rates up to 100 Mbps, providing robust galvanic isolation in electronic systems. This product, also identified as 2994805, employs iCoupler technology to ensure high-speed operation with low propagation delay, making it suitable for applications requiring reliable signal integrity, such as in industrial fieldbus communications, isolated data acquisition systems, and power supply circuits. The device operates over a wide temperature range and offers significant benefits in terms of size and power efficiency compared to optocouplers. Its compact design enables seamless integration into densely packed circuit boards while maintaining stringent isolation performance, critical for protecting sensitive components from transient voltage spikes and electrical noise.

Type	Linear IC - Digital isolator
Mounting Type	PCB mount
Operating temperature (max.)	105°C
Operating temperature (min.)	-40°C
Product Type	Linear IC - Digital isolator
Supply Voltage (analogue) (max.)	5.5V
Supply Voltage (analogue) (min.)	2.7V
