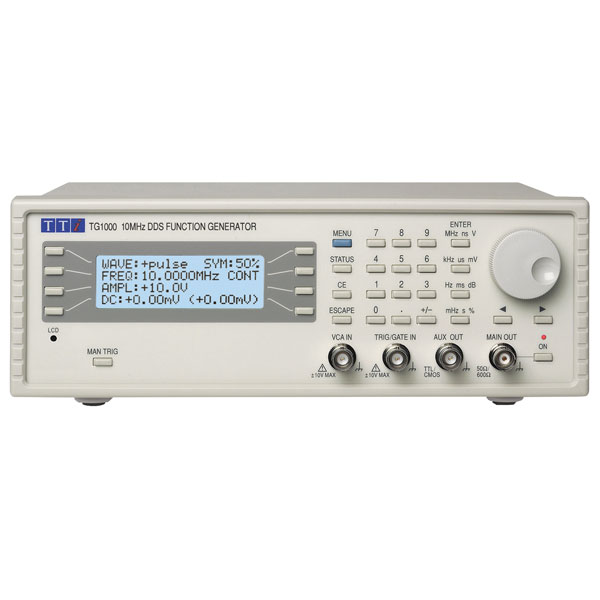

The Aim-TTi TG1000 breaks new ground by offering a high quality DDS
function generator at a significantly lower price. DDS (direct digital
synthesis) is a technique for generating waveforms digitally using a phase
accumulator, a look-up table and a DAC. The accuracy and stability of the
resulting waveforms is related to that of the crystal master clock. When
correctly engineered, the DDS generator offers not only exceptional accuracy and
stability but also high spectral purity, low phase noise and excellent frequency
agility.
The Thurlby Thander TG1000 is particularly easy to use. All of the main
information is clearly displayed on a backlit LCD with 4 rows of 20 characters.
Sub menus are used for the modulation modes and other complex functions. All
parameters can be entered directly from the numeric keypad. Alternatively most
parameters can be incremented or decremented using the rotary encoder for
quasi-analogue control.
- 0.001Hz to 10MHz frequency range
- 6 digits or 1MHz resolution
- 1ppm stability and 10ppm one year accuracy
- Low distortion, high spectral purity sine waves
- Internal phase continuous sweep, lin or log
- AM, FSK, gated and tone switching modes
- 5mV to 20V pk-pk from 50Ω or 600Ω
- Storage for multiple instrument set-ups
- Low cost
- Manufacturers part no. Aim-TTi TG1000
| Frequency Range |
0.001 to 10000000Hz |
| Display Type |
LCD |
