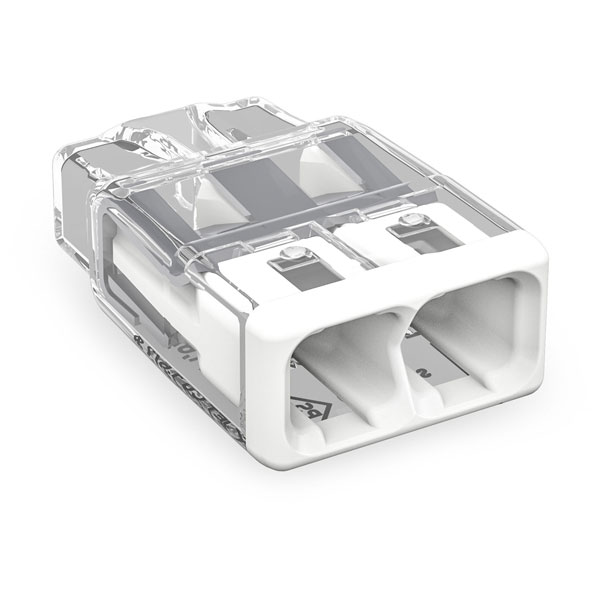

WAGO 2773-402 WAGO 4mm² 32A 2 Conductor Pushwire Connector

WAGO
Order Code:

21-5329

Brand: WAGO MPN: 2773-402 EAN-13: 4055143895408

Discontinued


The 2773 Series connector from WAGO offers convenient wiring in a compact design.

COMPACT splicing connector; for solid and stranded conductors; max. 4 mm²; 2-conductor; transparent housing; white cover; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent

These PUSH WIRE® connectors can be used with solid copper or stranded conductors.

Quick and Easy to use. Simply push the stripped conductor into the connector. Once the conductor is pushed in fully, the connector grips and terminates the conductor. This simple system saves time on installation and ensures a good connection is made that can be visually checked using the transparent case. The connector has a test slot located opposite the conductor entry direction. This allows easy testing, even when installed.

The 2773 series is available in 2, 3, 4, 5, 6, and 8 connector versions.


  • 2 Wire connector
  • Quick and simple to use
  • Extremely Compact design
  • Push-in termination of up to 2 solid/stranded conductors
  • Easily terminate conductors from 0.75 to 4 mm² (solid) or 1.5 to 4mm² (stranded)
  • Any combination of conductor sizes within the size range is possible
  • Side entry wiring
  • Connection of all conductor types
  • Transparent colour with white cover
  • Operating Temperature Range: up to 85°C
  • 11.6mm x 6.3mm x 18.6mm (W x H x D)
  • Manufacturers part 2773-402


Colour Clear/White
Maximum Wire Size (mm2) 4mm² / 12AWG Max.
Actuation Type Push-in
Body Style Horizontal
Category Installation Terminal Blocks and Connectors;Lighting Connection
Color transparent
Connectable conductor materials Copper
Connection PUSH WIRE®
Continuous Use Temperature -40 … +105 °C
Current Rating 32A
Depth inch 0.732 inches
Depth mm 18.6mm
Fire Load 0.014MJ
Flammability class according to UL94 V2
Flammability Rating UL94, V2
Height inch 0.248 inches
Height mm 6.3mm
Mounting Cable
Multi-stranded conductor max. AWG 12 AWG
Multi-stranded conductor max. mm² 4 mm²
Multi-stranded conductor min. AWG 18 AWG
Multi-stranded conductor min. mm² 1.5 mm²
Nominal Voltage 450V
Number of Ways 2
Product Main Function PUSH WIRE® Splicing Connector
Rated current 32 A
Rated Surge Voltage 4kV
Rated surge voltage (II / 2) 4 kV
Rated voltage (II / 2) 450 V
Single-stranded conductor max. AWG 12 AWG
Single-stranded conductor max. mm² 4 mm²
Single-stranded conductor min. AWG 20 AWG
Single-stranded conductor min. mm² 0.75 mm²
Strip Length 13mm
Stripping length of 1 mm 13mm
Stripping length up to 1 mm 13mm
Temp. Marking T85
Termination Push-Wire
Total number of potentials 1
Total number of terminal points 2
Type Splicing Connector
Type of operation Push-in
Unit Weight KGM
Width inch 0.457 inches
Width mm 11.6mm
Wiring Type Side-entry wiring
