WAGO 2231-120/031-000 Female Flanged 20P Pitch 5mm Push-button Pk10

Order Code:

57-0909

Brand: WAGO MPN: 2231-120/031-000 EAN-13: 4045454877231

Discontinued

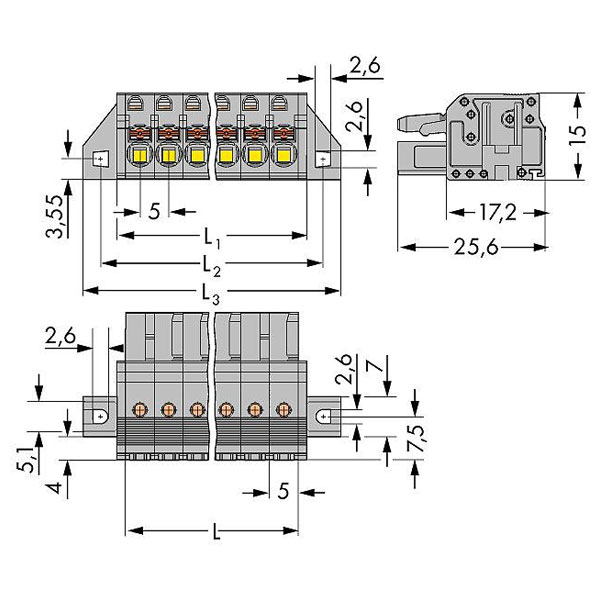

Pitch	5mm
No of Ways Per Row	20
Category	PCB Terminal Blocks and Connectors;Pluggable Connectors;Panel Feedthrough Components
Connection	Push-in CAGE CLAMP®
Depth inch	1.008 inches
Depth mm	25.6mm
Fine-stranded conductor max. AWG	12 AWG
Fine-stranded conductor max. mm²	2.5 mm²
Fine-stranded conductor min. AWG	12 AWG
Fine-stranded conductor min. mm²	0.2 mm²
Flammability class according to UL94	V0
Height inch	0.591 inches
Height mm	15mm
Product Main Function	Female connector/socket
Rated surge voltage (II / 2)	4 kV
Rated voltage (II / 2)	630 V
Single-stranded conductor max. AWG	12 AWG
Single-stranded conductor max. mm²	2.5 mm²
Single-stranded conductor min. AWG	24 AWG
Single-stranded conductor min. mm²	0.2 mm²
Stripping length of 1 mm	10mm
Stripping length up to 1 mm	11mm
Total number of potentials	20
Total number of terminal points	20
Type of operation	Push-button
Unit Weight	KGM
Weight	32.060 g
Width inch	4.52 inches
Width mm	114.8mm
