WAGO 2231-114/037-000 Female Locking Levers 14P Pitch 5mm Push-button Pk25

Order Code:

57-1234

Brand: WAGO MPN: 2231-114/037-000 EAN-13: 4045454877446

Discontinued

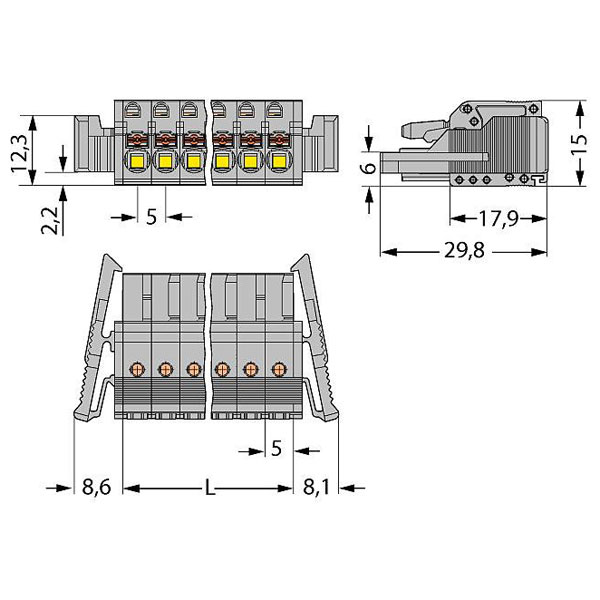

Pitch	5mm
No of Ways Per Row	14
Category	PCB Terminal Blocks and Connectors;Pluggable Connectors;Lighting Connection
Connection	Push-in CAGE CLAMP®
Depth inch	1.173 inches
Depth mm	29.8mm
Fine-stranded conductor max. AWG	12 AWG
Fine-stranded conductor max. mm²	2.5 mm²
Fine-stranded conductor min. AWG	12 AWG
Fine-stranded conductor min. mm²	0.2 mm²
Flammability class according to UL94	V0
Height inch	0.591 inches
Height mm	15mm
Product Main Function	Female connector/socket
Rated surge voltage (II / 2)	4 kV
Rated voltage (II / 2)	630 V
Single-stranded conductor max. AWG	12 AWG
Single-stranded conductor max. mm²	2.5 mm²
Single-stranded conductor min. AWG	24 AWG
Single-stranded conductor min. mm²	0.2 mm²
Stripping length of 1 mm	10mm
Stripping length up to 1 mm	11mm
Total number of potentials	14
Total number of terminal points	14
Type of operation	Push-button
Unit Weight	KGM
Weight	23.462 g
Width inch	3.413 inches
Width mm	86.7mm
