TT Electronics SW3470B 90W Desktop PSU 24VDC 3.75A

TT Electronics
Order Code:

85-2982

Brand: TT Electronics MPN: SW3470B

Discontinued

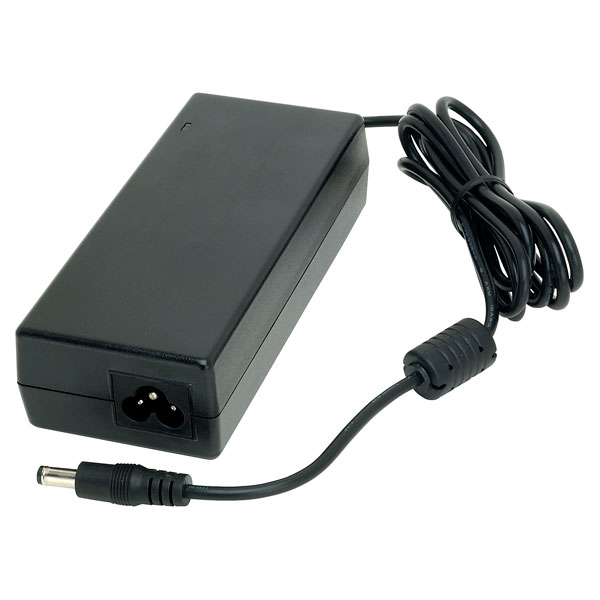

High quality desktop switch mode PSU that features an IEC320 C6 'cloverleaf' inlet and a captive lead with a 2.1 x 5.5 x 12mm female, centre positive DC connector. These PSUs are suitable for a range of applications including LCD monitors, notebooks, printers and portable devices.


  • Wide input voltage range 90V to 264V
  • Maximum power 90W
  • 24V version
  • LED indication
  • Short circuit, over voltage and over current protection
  • No load power consumption 0.5W
  • Requires a C5 socket to 13A plug cord 2m lead (order code 23-6500) not supplied
  • Efficiency Level VI
  • EMI specification meets CE/FCC Class B
  • Safety specifications BSMI, CB, GS, PSE, UL, cUL
Output Voltage 24V
Output Current 3.75A
Power Rating 90W
Dimensions 138 x 61 x 36mm
Input Connector IEC320
Output Connector 2.1 x 5.5mm
Supply Voltage Range 90 to 264V

Questions

*Question functionality currently disabled
Monday, June 27, 2016 | Question by: Rapid Customer | Product code: 85-2982
Q. what is the part number for the mains lead I need to order to use with this power supply please
A. Hi David, thank you for your question. You can find the mains lead here.
