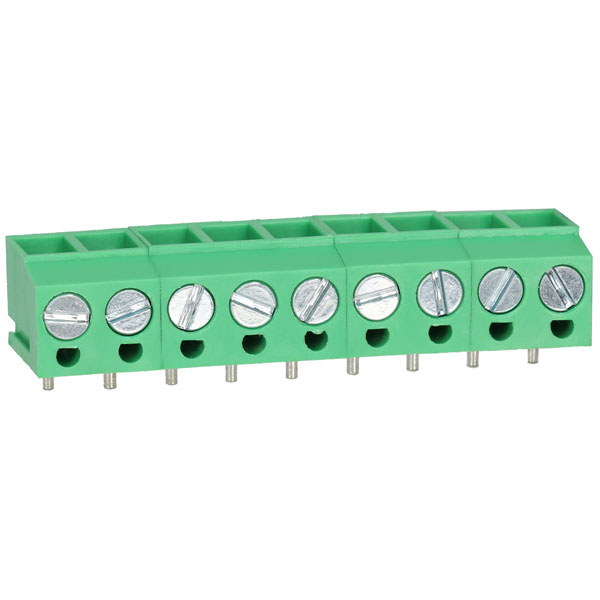

TruConnect 213985 5mm Standard Profile 90 Degree 9 Way Terminal Block

TruConnect
Order Code:

21-3985

Brand: TruConnect MPN: 213985 EAN-13: 5053556021352

  • Quickly find another product in this range by No. of Ways:

Qty Unit Price (Ex VAT)
1+ £1.59
5+ £1.23
10+ £1.04
25+ £0.897
50+ £0.792
100+ £0.709
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

Low profile, horizontal mounting, wire protector, moulded terminal block with 9 poles, 5mm pitch.


  • Low profile design
  • Interlocking (2-way and 3-way)
  • Horizontal orientation
  • Wire protector clamp
  • 22 to14AWG (2.5mm²)
  • Slotted screws
  • Rated voltage: 300V
  • Rated current: 10A
  • Moulded housing in green flame retardant PA66
  • Screws: M3, zinc plated steel
  • Pin header: tin plated brass
  • Stainless steel wire guard
  • UL approved
Pitch 5mm
No. of Ways 9
Mounting Type Through hole
Mounting Direction Horizontal
Wire Gauge (AWG) 22 to 14AWG
Wire Termination Screw, Wire Protector
Voltage Rating 300V
Current Rating 10A
Colour Green
Wire Gauge 2.5mm²
