TruConnect 213983 5mm Standard Profile 90 Degree 7 Way Terminal Block

TruConnect
Order Code:

21-3983

Brand: TruConnect MPN: 213983 EAN-13: 5053556021338

  • Quickly find another product in this range by Number of Ways:

Qty Unit Price (Ex VAT)
1+ £1.24
5+ £0.952
10+ £0.805
25+ £0.698
50+ £0.616
100+ £0.551
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
100 in stock, despatched same dayAdditional quantity lead time 5 months

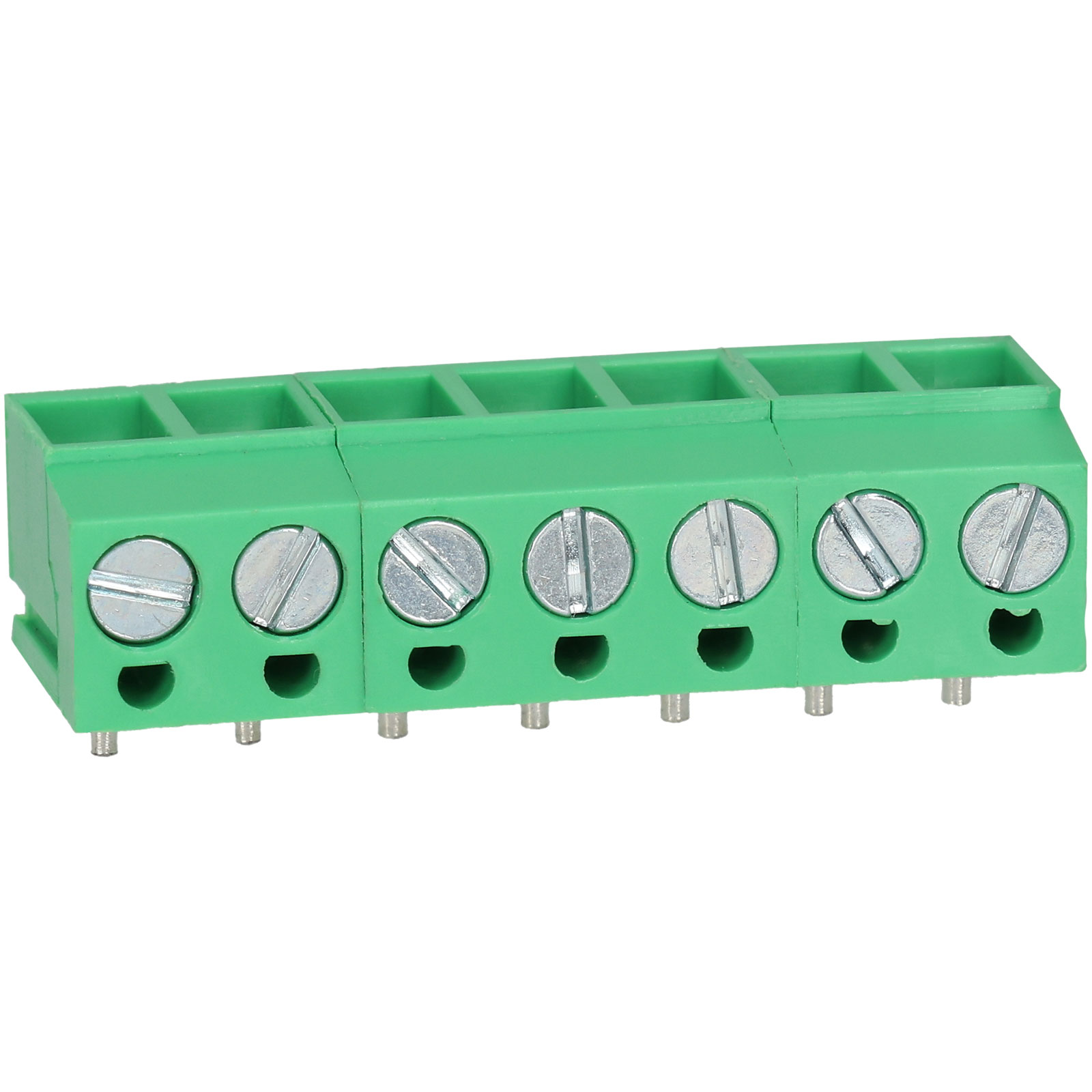

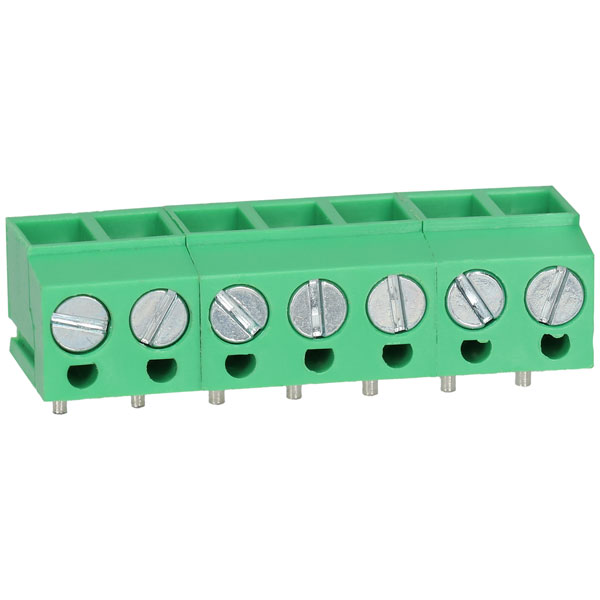

Low profile, horizontal mounting, wire protector, moulded terminal block with 7 poles, 5mm pitch.


  • Low profile design
  • Interlocking (2-way and 3-way)
  • Horizontal orientation
  • Wire protector clamp
  • 22 to14AWG (2.5mm²)
  • Slotted screws
  • Rated voltage: 300V
  • Rated current: 10A
  • Moulded housing in green flame retardant PA66
  • Screws: M3, zinc plated steel
  • Pin header: tin plated brass
  • Stainless steel wire guard
  • UL approved
Pitch 5mm
Mounting Type Through hole
Mounting Direction Horizontal
Wire Gauge (AWG) 22 to 14AWG
Wire Termination Screw, Wire Protector
Voltage Rating 300V
Current Rating 10A
Colour Green
Number of Ways 7
Wire Gauge 2.5mm²
