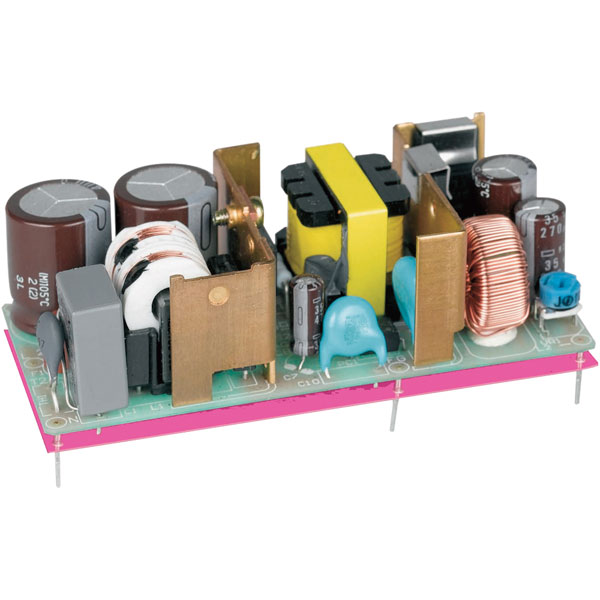

TracoPower TOM 25124 PCB Mount Open Switch Mode Power Supply 24V 1100mA 25W

These AC/DC open frame switching power supplies from the TracoPower TOM series are suitable for PCB mounting using soldering pins. Ultra-compact design makes these modules suitable for a wide range of applications in industrial and consumer electronics.

• Control deviations: Input voltage variation <l 20 mV, load variation < 50 mV at 12 W/<l100 mV at 25W
• Input frequency: 47 - 63 Hz
• Output current 1: 1100mA
• Output voltage: 24V DC
• Output voltage 1: 24 V
• Power: 26/4W
• Residual ripple: (20 Mhz BW) at 12W <150mVpk-pk/at 25W <200 mVpk-pk
• Manufacturer's part TOM 25124
