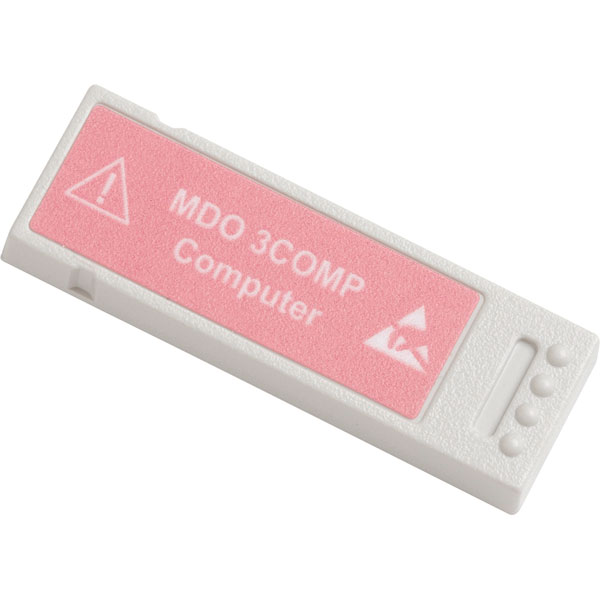

Tektronix MDO3COMP Application Module for MDO3000 Series

The Tektronix MDO3COMP is a Computer Serial Triggering and Analysis Module. The module enables triggering on packet-level information on RS-232/422/485/UART buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time-stamp information.

• Signal Inputs: Any Ch1 - Ch4, any D0 - D15
• Recommended Probing: RS-232/UART: Single ended and RS-422/485: Differential
• Licenses can be transferred between an application module and an oscilloscope
• Can be removed and stored for safekeeping
• Ideal or the Tektronix MDO3000 Series
• Manufacturer's part: Tektronix MDO3COMP
