TE Connectivity 292303-1 USB Connector Female Unshrouded 4P Type A

TE Connectivity
Order Code:

14-5633

Brand: TE Connectivity MPN: 292303-1
Qty Unit Price (Ex VAT)
150+ £1.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 150
7,470 in stock, despatched in 5 working days

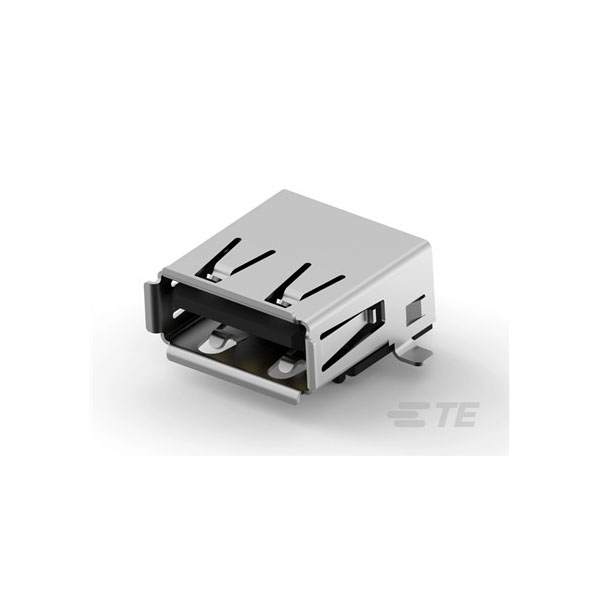

TE Connectivity 292303-1 is a USB connector, specifically a female unshrouded 4-pin Type A.

This component is known for its robust design and reliable connectivity.

It is typically used in electronics requiring standard USB interfaces, such as computers and peripheral devices.

The connector is suitable for applications demanding high durability and secure data connections.


Type USB Connectors
Centerline (Pitch) 2.4892mm
Circuit Application Power & Signal
Connector & Contact Terminates To Printed Circuit Board
Connector & Housing Type Receptacle
Connector Mounting Type Board Mount
Connector Profile Standard
Connector System Cable-to-Board
Contact Current Rating (Max) 1
Contact Mating Area Plating Material Gold or Gold Flash over Palladium Nickel
Contact Mating Area Plating Material Thickness 29.92
Housing Material Thermoplastic
Industry Standard USB 2.0
Moisture Sensitivity Level 1
Number of Positions 4
Operating Temperature Range -67 – 185
Packaging Method Box & Tube
Packaging Quantity 30
Panel Mount Feature Type Flange
PCB Mount Retention Type Kinked Legs
PCB Thickness (Recommended) .062
Shell Plating Material Tin
Termination Method to PCB Through Hole - Solder
Termination Post & Tail Length .112
UL Flammability Rating UL 94V-0
