Sedlbauer 825038 Toroidal Transformer 2x115V 2x12V 200VA 8.34A Galvanic Separati

Sedlbauer
Standard range
Order Code:

12-9201

Brand: Sedlbauer MPN: 825038 EAN-13: 2050001587961
Qty Unit Price (Ex VAT)
1+ £102.96
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
10 in stock, despatched in 4 working days

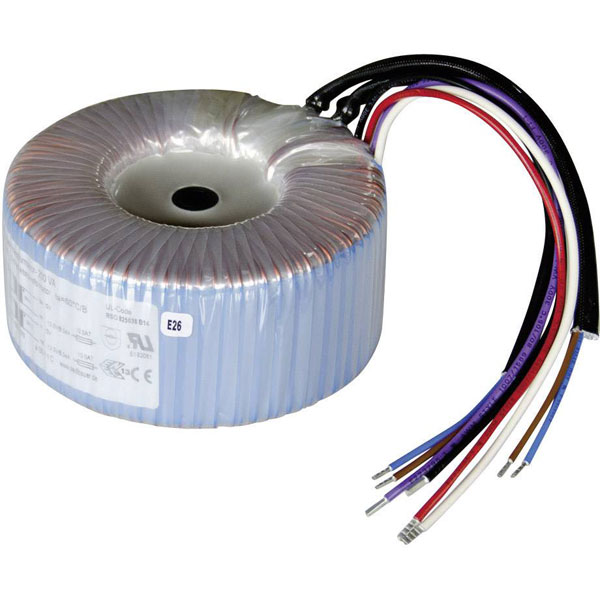

The Sedlbauer 825038 toroidal core transformer delivers an output of 2 x 12 V AC with a power rating of 200 VA and a current of 8.34 A, making it suitable for demanding applications. Manufactured by Sedlbauer, it features dual 115 V input and a compact, efficient toroidal design. This transformer is typically used in automation systems and as a halogen transformer.
Type Toroidal core transformer
(Ø) 115mm
Cable length 20.00cm
Connection Open end cable
Design type Remaining hole casting (pressure-free mounting)
Dim (Ø x H) 115 mm x 62 mm
Frequency 50 - 60Hz
Height 62mm
Input voltage 115V
Input voltage (number x voltage) 2 x 115 V
Insulation class B
Max. ambient temperature +60°C
Misc Attribute 825038
No. of inputs 2
No. of outputs 2
Output Current 8.34A
Output voltage 12V AC
Output voltage (number x voltage) 2 x 12 V AC
Power 200VA
Protection class II (prepared)
Standards IEC 61558-2-4, DIN EN 61558-2-4; 2-6; 2-6, VDE 0570 Part 2-4; 2-6 with ENEC and UL test symbol
Test voltage 4400V
Weight 2.54kg
