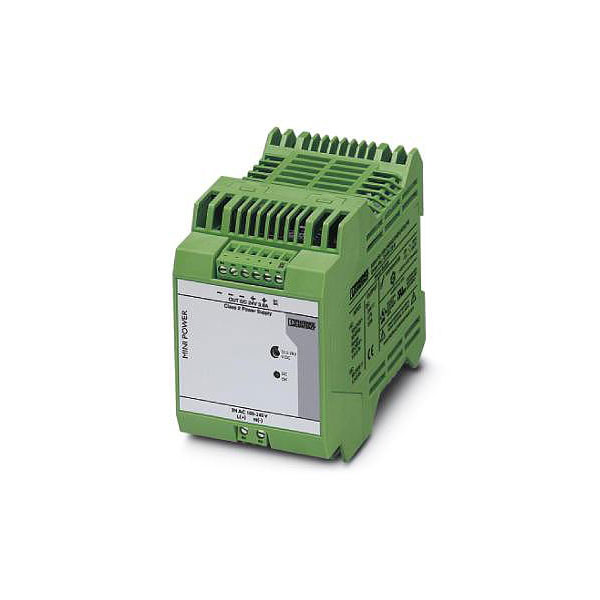

Phoenix Contact 2866336 MINI-PS-100-240AC/24DC/C2LPS Power Supply Unit 100W

This DIN rail power supply unit from Phoenix Contact is equipped with primary-switched mode, slim design, output: 24V DC/100W and has NEC Class 2 approval.
Worldwide use of wide-range output and international approval package, other features include: high operational reliability thanks to high MTBF >500 000 h, parallel switch bar for increased output and redundancy, simplified operation by LED fault monitoring, outdoor installation permitted by temperature range of-25°C to +70°C and U/I characteristic curve for supplying capacitive loads.

• Modular housing for single appearance in the MSR technology
• /
• Input1 -phase
• Input voltage range 85-264V AC/90-350V DC
• Connections: Screw/plug terminals
• Manufacturer's part 2866336

For more information on this Phoenix Contact power supply, please see its datasheet.
DIN rail power supply

Output Voltage	24V
Number of Outputs	1
Input Voltage	85 - 264 AC
