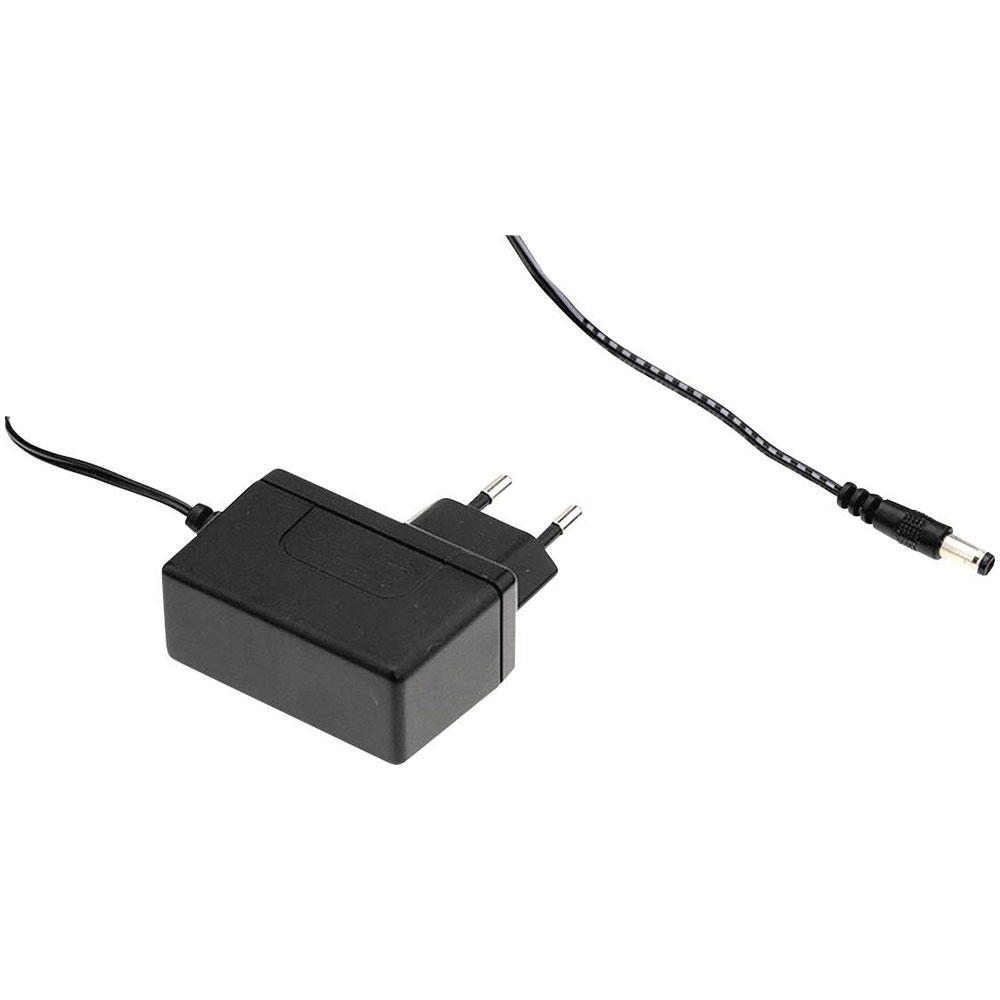

Mean Well GSM12E24-P1J PSU 24V DC 0.5A 12W fixed voltage mains supply

Mean Well
Standard range
Order Code:

05-0611

Brand: Mean Well MPN: GSM12E24-P1J
Qty Unit Price (Ex VAT)
1+ £14.28
5+ £13.84
10+ £13.42
25+ £12.99
50+ £12.56
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
53 in stock, despatched in 4 working days

The Mean Well GSM12E24-P1J is a fixed voltage mains power supply unit outputting 24 V DC at 0.5 A, with a total power rating of 12 W. It features a 5.5/2.1 coaxial connector, making it suitable for powering devices that require stabilised DC input, such as toy transformers or small electronic appliances. This PSU is ideal for applications needing reliable and consistent power delivery.
Type Mains PSU (fixed voltage)
Cable length 1.80m
Connection 5.5/2.1 coaxial connector
Dim (L x W x H) 62.2 x 39.7 x 27.4 mm
EuP Status Level VI
Height 27.4mm
Length 62.2mm
Max. output current 0.5A
Misc Attribute 1 GSM12E24-P1J
Misc Attribute 2 Pulsed
No. of inputs 1
No. of outputs 1
Output 5.5/2.1 coaxial connector
Output current (max.) - rounded 500mA
Output voltage 24V DC
Power 12W
Weight 100g
Width 39.7mm
