matt:e SP-EVCP-BC60 1PH 32A Type B RCCB Connection Unit for 1 x 1PH 32A EVC 60A

matt:e
Order Code:

65-3765

Brand: matt:e MPN: SP-EVCP-BC60

Discontinued

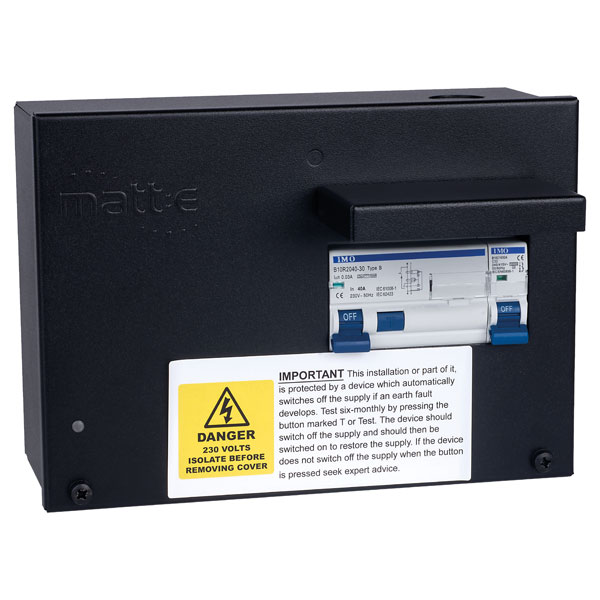

The SP-EVCP-B from matt:e is a simple single connection unit, that allows for the connection of 1x 32A single-phase charge point to the existing PME earthing facility.

The unit incorporates a unique monitoring device which disconnects all poles including CPC in the event of a fault and a built in double-pole Type B RCD and 32A MCB.

The matt:e SP-EVCP-B does not require earth rods or measuring electrodes to function correctly.


  • Connection unit for 1x 32A single-phase EV charge point
  • Built-in matt:e technology
  • No Earth electrodes required
  • BS:7671:2018 Amendment 1:2020 compliant
  • Built-in Type B RCD and MCB
  • Simple wire-in, wire-out connection
  • Designed and built in the UK
  • Matt:E type SP-EVCP-BC
ColourBlack
Dimensions (H x W x D)169 x 232 x 111mm
FinishPowder-coated
Frequency50Hz
Guarantee3 years
IP ratingIP2X
MaterialMild steel
Voltage rating230V, single-phase

This unit is designed for use in domestic dwelling applications where a single phase PME supply is feeding Electric Vehicle Chargers. It should NOT be used in premises with 3 phase supplies.
Click Here for 3-Phase versions.
Build Type Pre-configured connection centre
Incoming Supply Rating 32A
IP Rating IP2X (Indoor)
Load Curtailment Yes
Protection Included MCB & Type B RCD/RCCB
