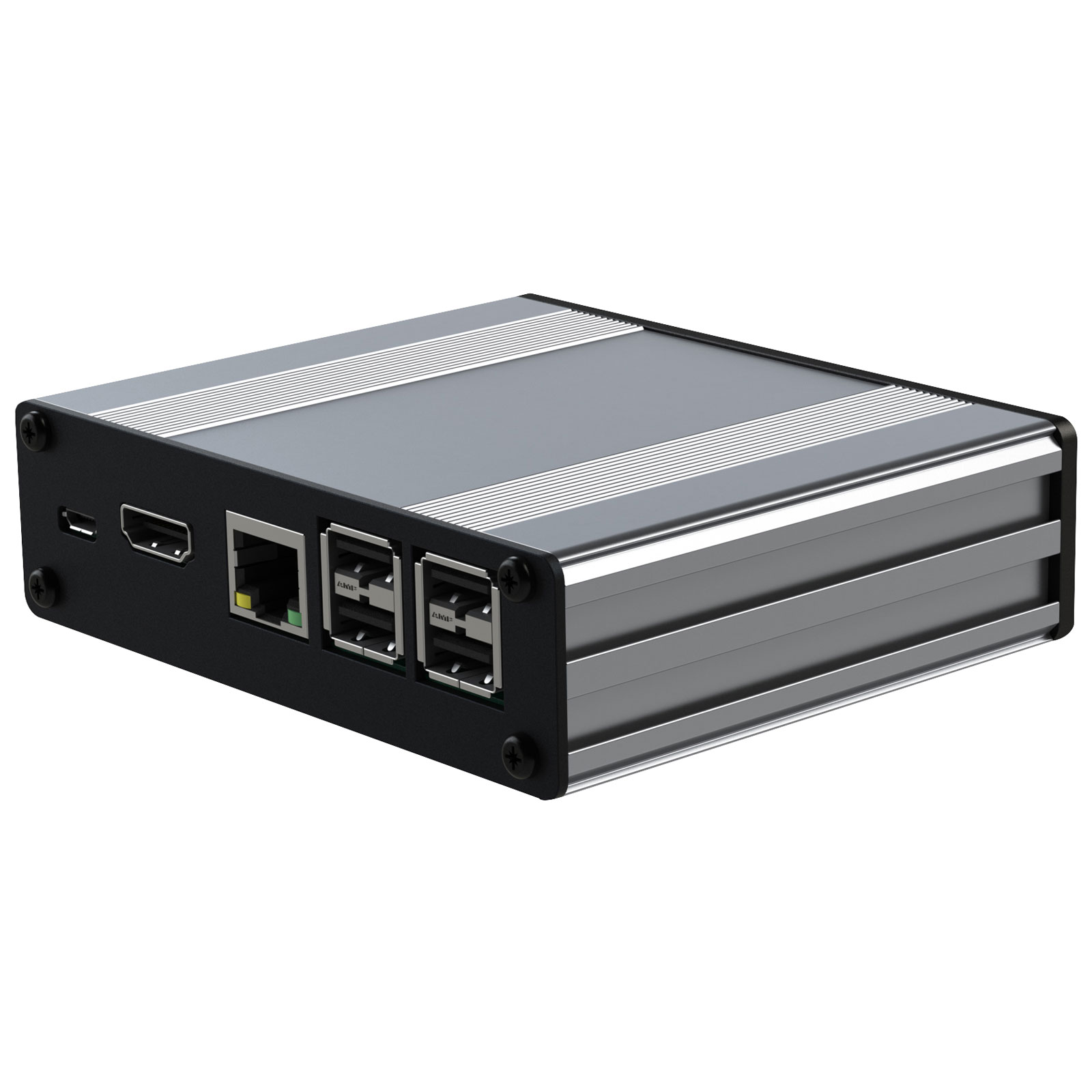

Lincoln Binns PIBS1-NS Pi-Box Pro for Raspberry Pi in Silver

Lincoln Binns
Order Code:

30-0513

Brand: Lincoln Binns MPN: PIBS1-NS

Discontinued


The Raspberry Pi is used in its millions worldwide in a range of applications, but having connectors on multiple sides can often make it problematic for industrial processes. The Pi-Box Pro from Lincoln Binns provides the solution.

This Pi-Box Pro includes extender boards which plug into the Pi to align HDMI and Micro USB sockets at one end. The Pi-Box Pro can then be mounted to virtually any surface, using accessories including lugs, brackets and DIN rail clips, to make the Pi itself easily accessible.


Pi-Box Pro is supplied with:

  • Extender board
  • Carrier plate
  • E-case B extrusion
  • Aluminium end plate
  • Acrylic end plate (for WiFi & Bluetooth)
  • Screws and fixings
  • Colour: Silver
  • Size: 108 x 87 x 30mm
  • Weight: 206g
  • Manufacturer's part PIBS1-NS

Please note: Raspberry Pi not included.
Not suitable for Raspberry Pi 4.Mounting accessories are available separately.



Material Aluminium
Colour Silver
Enclosure Height 30mm
Enclosure Length 108mm
Enclosure Width 87mm
Type DIN Mount Enclosures Raspberry Pi

Questions

*Question functionality currently disabled
Thursday, January 17, 2019 | Question by: Rapid Customer | Product code: 30-0513
Q. What is the difference between the PIBS1 and PIBS1-NS
A. Hi Steve, thank you for your question. PIBS1 (30-0511) has a small cut out at the rear for the SD card whereas PIBS1-NS (30-0513) does not have this cut out.
