LappKabel 53112546 gland M50 brass robust design for secure connections

LappKabel
Extended range
Order Code:

67-6246

Brand: LappKabel MPN: 53112546
Qty Unit Price (Ex VAT)
1+ £145.71
30+ £138.43
100+ £135.51
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

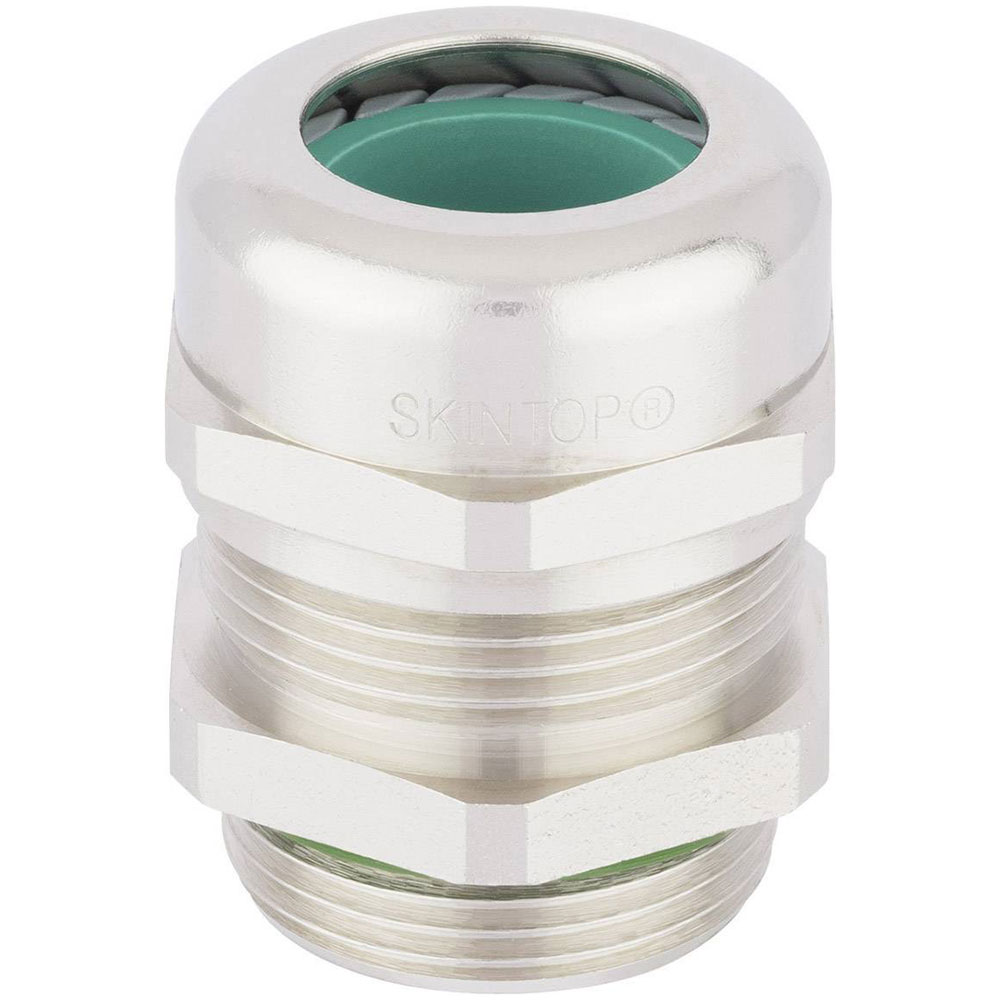

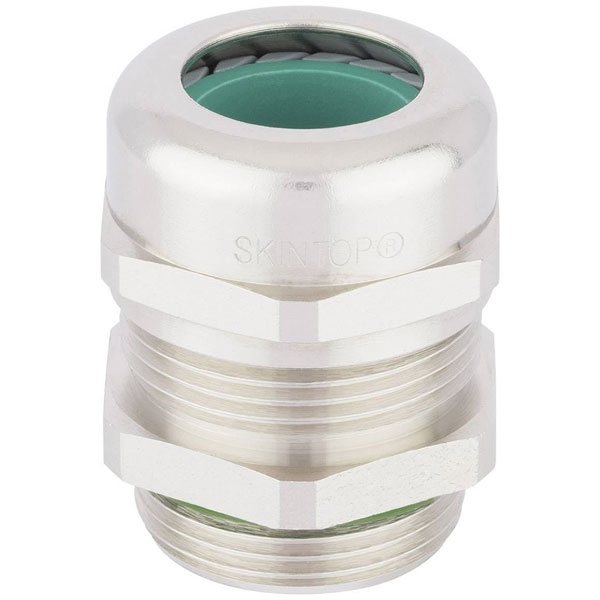

Introducing the LappKabel 53112546 Gland, designed to provide secure and reliable connections for your cable installations. Made from high-quality brass, this M50 gland features a robust design that ensures durability and long-lasting performance in various applications.
Type Cable Gland
Certification marks DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30
Clamp Ø 27mm
External thread M50
Factory colour Brass
Halogen-free Yes
IP rating IP68
Manufacturer part # 53112546
Material Brass
Max. temperature +100°C
Min. temperature -25°C
Misc Attribute SKINTOP® MS-HF-M BRUSH M50
RoHS-compliant Yes
Spanner size 54mm
Terminal Ø (max.) 35mm
Thread Length 10mm
