For continuously moving applications in the smallest bending radii up to 7.5 x outer diam. In power chains or mobile machine parts. In humid and wet areas. In the open air without UV protection and only in accordance with the temperature range. Application in measurement, control and instrumentation circuits, load circuits of electrical equipment in automation, assembly and handling technology, flow and assembly lines, production lines, machines of all kinds of tiny external diameter and Optimal. therefore, reduced space requirements in the power chain. Designed for a lifespan of at least 5 million cycles of alternating Biegel power chain.
| Type |
Cable |
| Bend radius |
Minimum bend radius for flexible application: 7.5 x external dia.; when laid fixed: 4 x external dia. |
| Bend radius (no. of ODs for fixed installation) |
4 |
| Bend radius (no. of ODs for flexible installation) |
7.5 |
| Cable type |

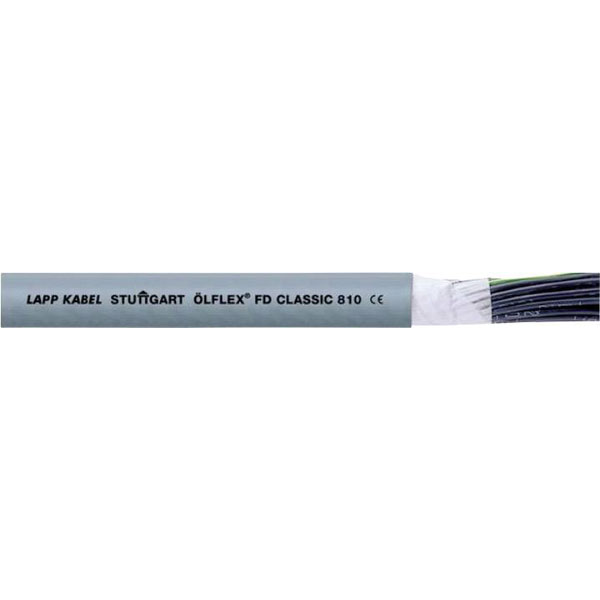

ÖLFLEX® FD CLASSIC 810 |
| Certification marks |
{DIN} VDE compliant, conductors to VDE 0245/0281 sheath to VDE 0245/0281. |
| Core layout |
Extra-fine strands according to VDE 0295 class 6/IEC 60228 CI.66 |
| Cross section (each core) |
1.50mm² |
| Factory colour |
Grey |
| Halogen-free |
No |
| Manufacturer part # |
26153/1 |
| Max. length sold by the metre |
300m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+70°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
0°C |
| Misc Attribute |
ÖLFLEX® FD CLASSIC 810 |
| No. of leads |
7 G |
| Nominal voltage |
500V |
| Nominal voltage (details) |
300/500V |
| Nominal voltage U0 |
300V |
| Outside Ø |
11.50mm |
| Packaged |
No |
| Shielded |
No |
| Sold per metre |
Yes |
| Temperature Range |
Active: 0 - +70 °C, fixed: -40 - +80°C |
| Wire ID code |
Black conductors with white numbering (VDE 0293) |
