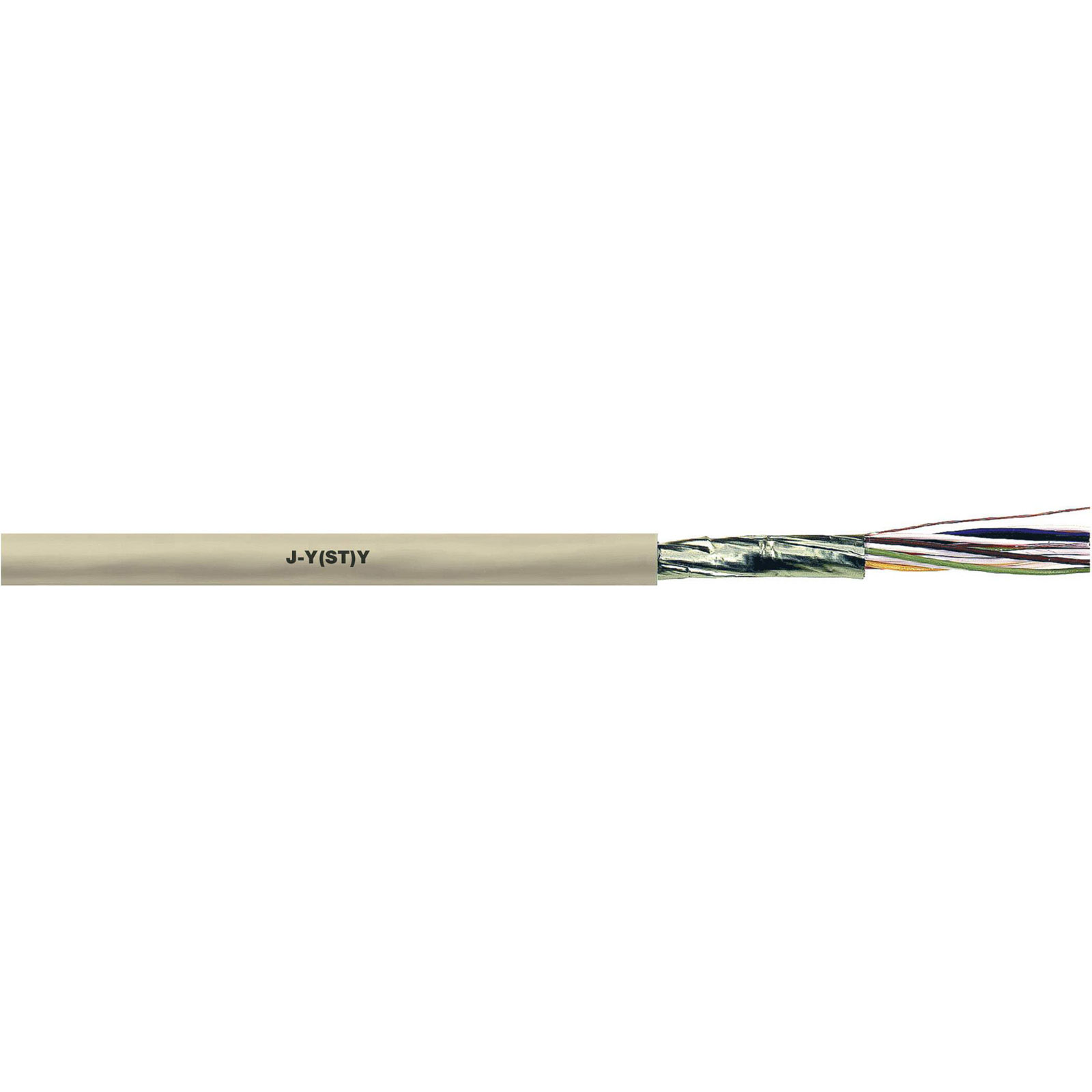

LappKabel 1591503/250 cord 4x2x0.80 mm grey 250 m halogen-free flame resistant

Name: LappKabel 1591503/250 cord 4x2x0.80 mm grey 250 m halogen-free flame resistant
Brand: LappKabel
Price: 268.10 GBP
Availability: InStock

Standard range

Order Code:

67-6050

Brand: LappKabel MPN: 1591503/250

RoHS Compliant
Country of Origin: Italy
Free UK shipping available
View Full Product Range (2)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£268.10

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

This halogen-free, flame resistant installation cable with static shield is for telephone, measurement and signal transmission and is used in speech unit and private extension telecommunications systems of all classes, in dry and damp operating sites as well as on or under plaster.

Type	Cable
Bend radius	6 x external dia.
Bend radius (no. of ODs for fixed installation)	10
Cable type	J-Y(ST)Y
Certification marks	In Anlehnung an VDE 0472, Teil 804 Prüfart C
Core layout	Plain copper
Cross section	4 x 2 x 0.80 mm
Cross section (each core)	0.80mm
Factory colour	Grey
Halogen-free	No
Insulation material	PVC
Manufacturer part #	1591503/250
Max. temperature range (fixed installation)	+70°C
Max. temperature range (flexible installation)	+50°C
Min. temperature range (fixed installation)	-30°C
Min. temperature range (flexible installation)	-5°C
Misc Attribute	J-Y(ST)Y...LG 4X2X0,8
No. of leads	8
Nominal voltage	300V
Nominal voltage (details)	300 V (not for heavy current applications)
Outside Ø	9mm
Packaged	Yes
Shielded	Yes
Sold per metre	No
Temperature Range	When permanently installed: -30 - +70°C
Twisted pair cabling (part 1)	Yes (1)
