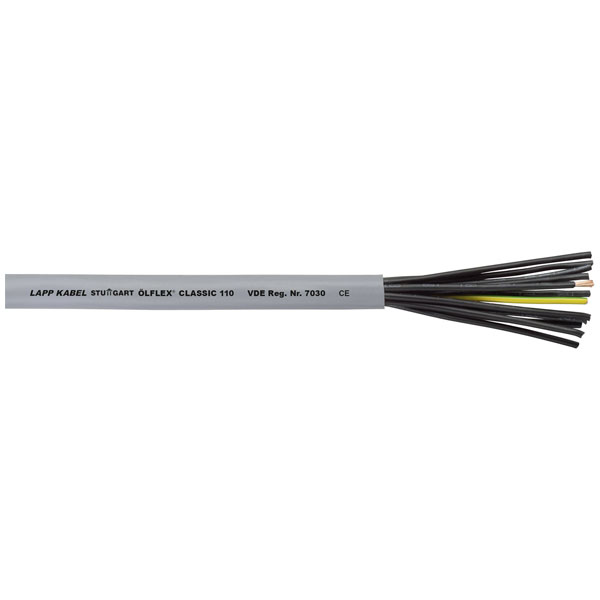

LappKabel 1119318/1 CLASSIC 110 Control lead 18 G 1.50 mm² Grey

Control and connection cable, especially under industrial conditions. Mainly in dry, damp or wet areas in normal mechanical stress.. Outdoors, under the temperature observation and not without UV protection. For free appliances, not continuously moving and without tensile loads or compulsory guidance, and for fixed installations. Engineering, plant construction, painting, heating and air conditioning, power plant technology. Optimized, small external diameter and therefore reduced space requirements. High insulation safety by 4 kV test voltage. During production, free from paint-wetting impairment substances (LBS-free / silicone), making it suitable for painting.

Type	Control Lead
Bend radius	15 x external dia. for wide range of applications, 4 x external dia. when permanently installed
Bend radius (no. of ODs for fixed installation)	4
Bend radius (no. of ODs for flexible installation)	15
Certification marks	VDE-Reg. Nr. 7030
Core layout	Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5
Cross section (each core)	1.50mm²
Factory colour	Grey
Halogen-free	No
Manufacturer part #	1119318/1
Max. length sold by the metre	500m
Max. temperature range (fixed installation)	+80°C
Max. temperature range (flexible installation)	+70°C
Min. temperature range (fixed installation)	-40°C
Min. temperature range (flexible installation)	-5°C
Misc Attribute 1	UNITRONIC® CLASSIC 110
Misc Attribute 2	ÖLFLEX® CLASSIC 110
No. of leads	18 G
Nominal voltage	500V
Nominal voltage (details)	300/500V
Nominal voltage U0	300V
Number-coded	Yes
Outside Ø	14.40mm
Packaged	No
Sold per metre	Yes
Suited for cable carriers	No
Temperature Range	-5 - +70 °C, applications with movement: · Fixed installation: -40 - +80 °C°C
Test voltage	4000V
Wire ID code	Black conductors with white numbering (VDE 0293)
