FLIR T912305 Si2-PD Acoustic Imaging Camera for Partial Discharge Detection

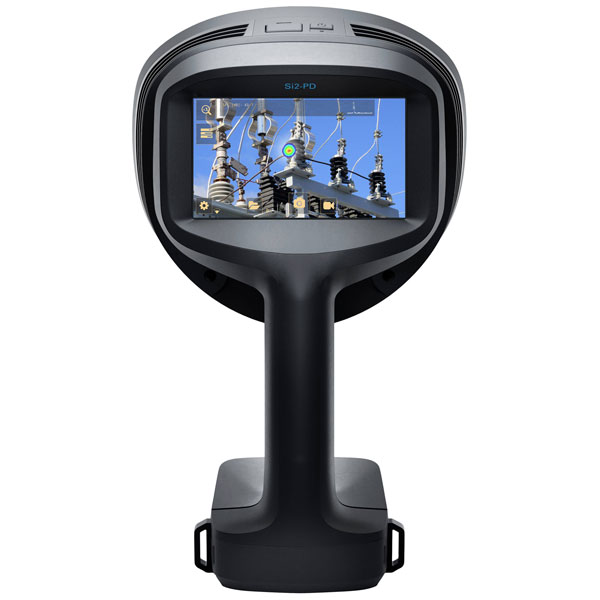

The FLIR T912305 Si2‑PD, is a high-end industrial acoustic imaging system engineered for partial discharge detection, classification, and severity assessment. It uses a large MEMS microphone array to visualise ultrasonic emissions from partial discharge activity and overlays this information on a digital camera image, enabling fast, safe, long distance monitoring of electrical devices.

This devices primary functions are detect, locate, classify & assess partial discharge faults up to 200m (656ft), identify partial discharge events 30× smaller than previously possible, and provide on-camera AI‑based severity assessment with recommended actions.

Partial Discharge (PD) Detection

• Detects and classifies PD types at long distances (up to 200m)
• Identifies PD events 30× smaller than earlier-generation tools
• AI‑based severity assessment built into the device and supported via software

Acoustic Performance

• Acoustic bandwidth: 2 kHz – 130 kHz
• Detection thresholds: –7 dB (20 kHz), 4 dB (35 kHz), 10 dB (50 kHz), 36 dB (80 kHz), 51 dB (100 kHz)
• Directional resolution: 1° to 0.125°

Imaging & Display

• 12 MP colour digital camera
• Field of view: 75° diagonal
• Screen: 5" 1280×720 resistive touch TFT LCD
• Video: Camera: 60 fps
• Acoustic image: 30 fps
• Display: 70 fps
• Zoom: 8× digital

User Interface & Operation

• One‑handed operation with automatic tuning
• Integrated LED flashlight with multiple brightness modes
• IP54‑rated enclosure
• Fleet management features for enterprise scaling

Data, Software & Connectivity

• Works with: FLIR Acoustic Camera Viewer (cloud), FLIR Thermal Studio (desktop)
• Wi‑Fi (2.4 / 5 GHz) for OTA updates and data transfer
• Image formats: .nlz, .jpg (videos up to 5 minutes)
• 128 GB internal SD card, USB (8 GB), Unlimited cloud space

Power

• Li‑ion battery: 14.4 V, 3.45 Ah, ~2.5 h runtime
• Charge via external charger or USB/OTA updates
