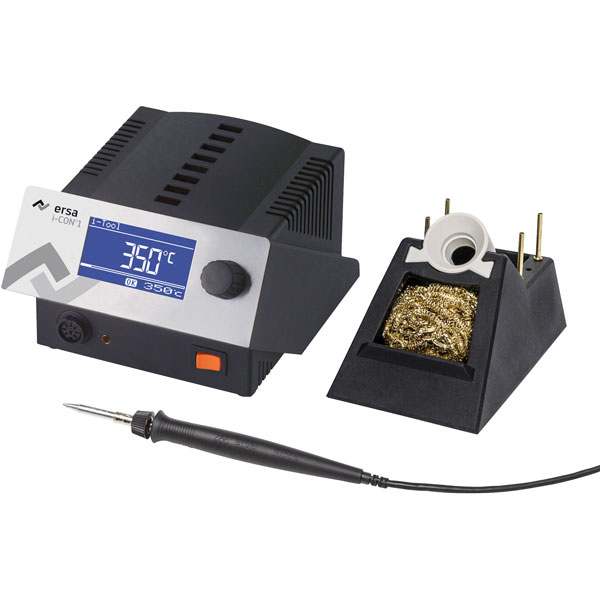

Ersa 0IC1100A i-Con 1 with i-Tool Digital Soldering Station 80W

The Ersa i-CON 1 is a digital soldering station with an ergonomic and powerful 150W i-TOOL soldering iron suitable for all SMT and PTH soldering tasks in electronic production, rework and R&D.

The powerful i-TOOL provides sufficient energy for high-mass solder joints and takes a wide range of i-Tips allowing it to be quickly adapted to the current soldering task. A motion sensor in the hand-piece automatically puts the station into standby mode to save energy and extend tip life.

The station is easy to operate with an intuitive one-touch, push-button and large multifunctional displays.

• Digital display
• Antistatic design
• Heat up time 9 seconds
• Temperature range 150 to 450°C
• Power rating 80W
• Power consumption in standby 15W
• Nominal input voltage 230V AC
• Secondary voltage 24V
• Dimensions (W x D x H) 150 x 175 x 105mm
• Weight 3.0kg
• Approvals CE, VDE
