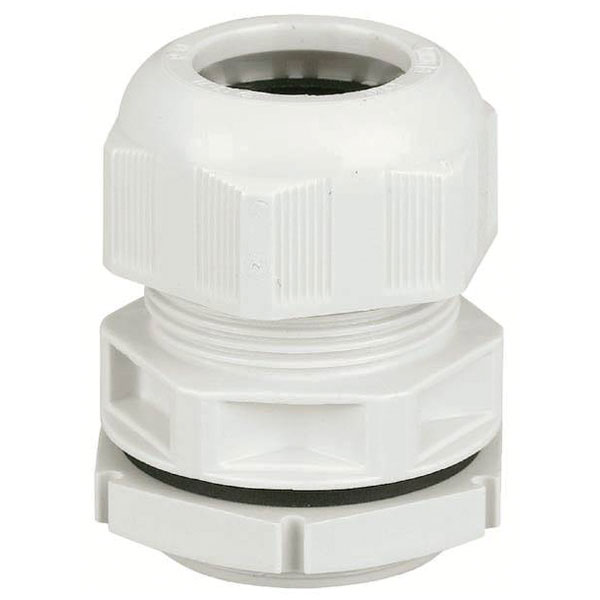

The Eaton 206911 cable gland, model V-M25, is designed for secure cable entry. It is commonly used to ensure safe and effective connections in electrical enclosures and equipment. This robust component is essential for maintaining the integrity and protection of wired installations.
| Type |
Cable gland |
| Clamp Ø |
9mm |
| Colour |
Grey |
| Degree of protection (IP) |
IP68 |
| Explosion-tested version |
FALSE |
| External thread |
M25 |
| Factory colour |
Grey |
| Flat cable coupling |
FALSE |
| For armoured cable |
FALSE |
| For Ex-zone dust |
None |
| For Ex-zone gas |
None |
| Glass-fibre reinforced |
FALSE |
| Halogen free |
TRUE |
| Hexagon angular dimension |
0mm |
| IP rating |
IP68 |
| Manufacturer part # |
206911 |
| Material |
Plastic |
| Material quality |
Polyamide (PA) |
| Misc Attribute |
V-M25 |
| Model |
Straight |
| Multi seal area |
FALSE |
| Nominal thread size inch/gas pipe thread |
Other |
| Nominal thread size metric/PG |
25 |
| Operating Temperature |
-20-120°C |
| Pitch thread |
1.5mm |
| Pressure-compensating |
FALSE |
| RAL-number |
7035 |
| RoHS-compliant |
Yes |
| Screened |
FALSE |
| Separable screw gland |
FALSE |
| Shock resistant |
TRUE |
| Snapping in opening |
FALSE |
| Spanner size |
36mm |
| Suitable for cable diameter |
9-12mm |
| Surface protection |
Untreated |
| Terminal Ø (max.) |
17mm |
| Thread Length |
10mm |
| Thread Type |
Metric |
| Type of sealing |
Cut-out ring |
| With locknut |
TRUE |
| With strain relief |
TRUE |
| Wrench width |
36mm |
