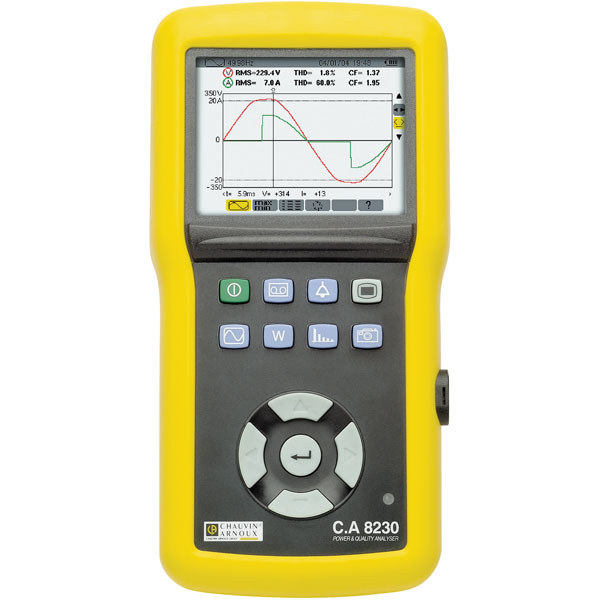

Chauvin Arnoux P01.1606.32 C.A 8230 Mains Analysis Device

The Chauvin Arnoux CA 8230 mains analyser features a QVGA (320 x 240) colour graphic LCD screen to display readings and waveforms. This analyser is able to capture and display 17 measures of mains quality including true RMS voltage and current, frequency, flicker, power factor and harmonic phase shift. It can analyse total harmonic distortion and display individual waveforms up to the 50th harmonic. With 1.5Mb of storage for recording data and up to 8 screen captures the CA 8230 can be connected to a PC running the Dataview software for analysis and report generation. A suitable USB cable and the Dataview software are supplied with the unit.

• True RMS voltage and current, frequency
• kW, kVAR, PF, DPF, kWh, kVARh, kVAh
• K-factor, flicker, harmonic phase shift, phase rotation
• Internal rechargeable NiMH battery
• L x W x H 211 x 108 x 60mm
• Weight: 880g
