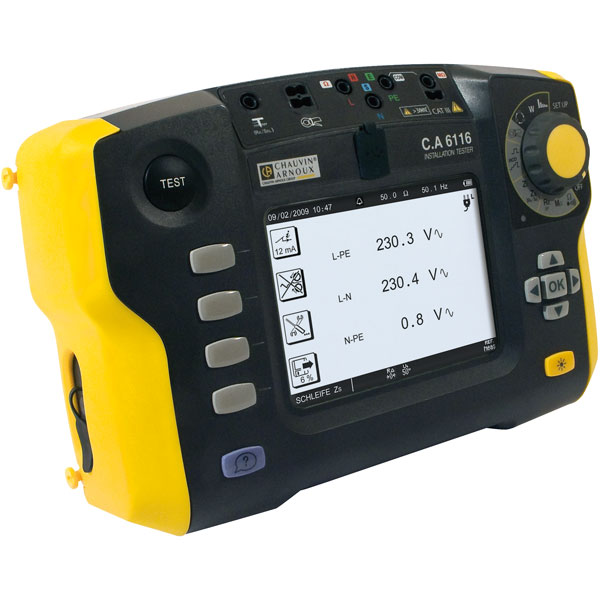

Chauvin Arnoux P01.1454.50 C.A 6116 Insulation Measuring Device

This Chauvin Arnaud CA6116 multi-function electrical installation tester is a versatile and easy to use instrument for testing installations to international standards (DIN VDE 0100/0413, EN 61557, IEC 60364-6, ÖVE/ÖNORM E 8001, NIN/NIV etc). It features an extra-wide backlit screen, large menu buttons and a context sensitive help system for each function. Even in difficult conditions, with considerable interference, it produces stable results. Up to 4000 measurements can be stored and transferred to the Dataview software via USB. Systems operating up to 500V AC and 65Hz can be tested with this fast and efficient battery operated device.

• Back lit LCD screen 14.5 cm (5.7"), 320 x 240 pixels
• Frequency range DC and 15.3 to 500Hz
• Insulation resistance range from 10kΩ to 2GΩ
• Resistance range from 0 to 399.9kΩ
• Test voltages 50,100,250,500 and 1000 V DC
• Electrical safety: IEC 61010-1 – 600 V, CAT III/300 V and CAT IV – IEC 61557
• EN 61010 CAT IV 300V, CAT III 600V
• IP53 Protection
• L x W x H 280 x 190 x 128mm
• Weight 2.4kg
