Bulgin PX0921/02/S 900 Series 2 Pole IP68 Socket Connector, 32A, In-Line Mount

Bulgin
Standard range
Order Code:

11-5474

Brand: Bulgin MPN: PX0921/02/S EAN-13: 2050000248467
Qty Unit Price (Ex VAT)
1+ £25.39
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
26 in stock, despatched in 4 working days

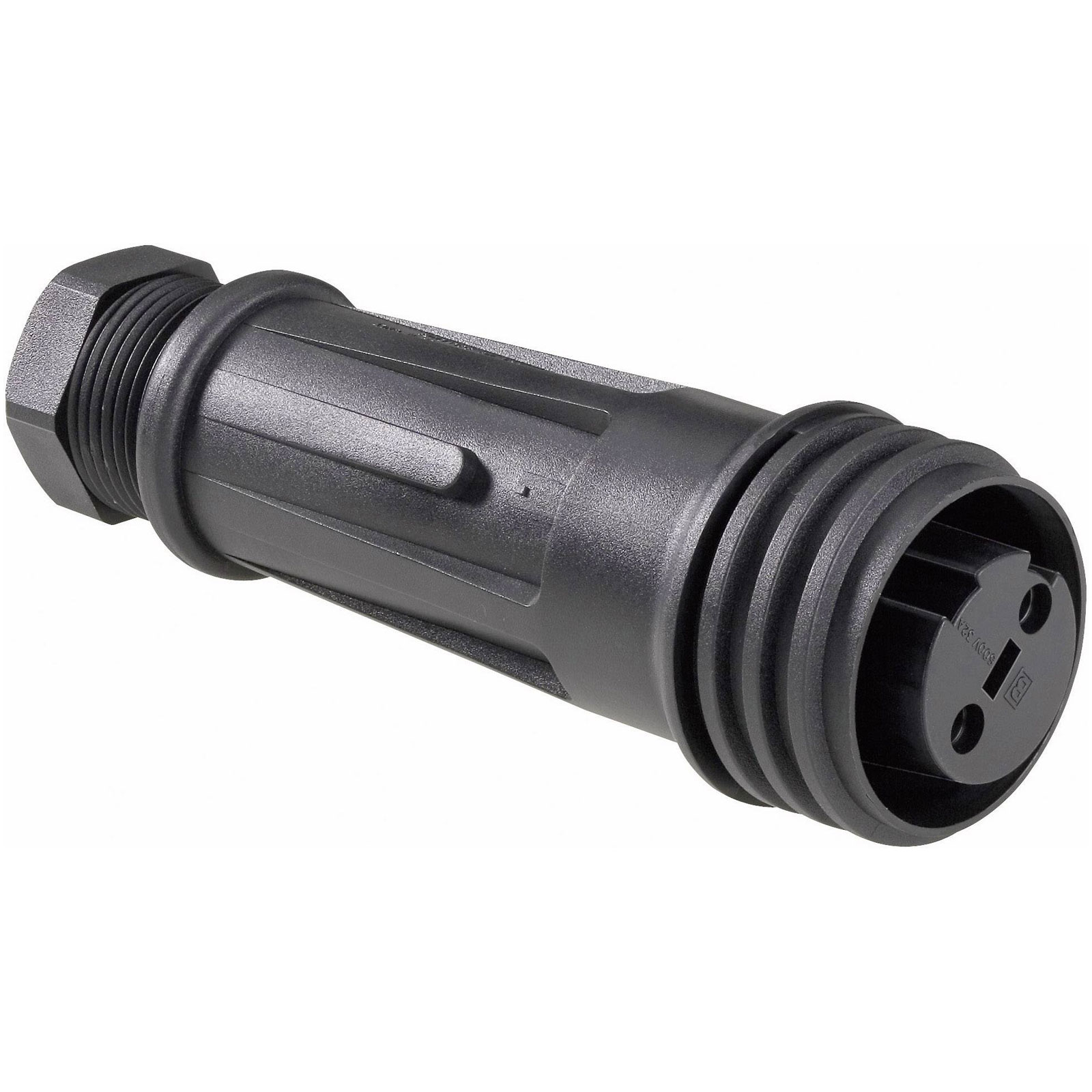

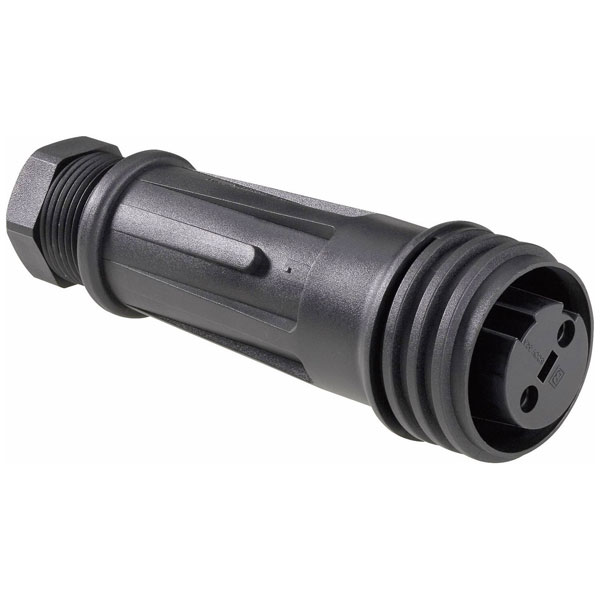

The Bulgin PX0921/02/S is a 2-pole IP68 socket connector from the 900 Series Buccaneer range, designed for standard in-line flex cable mounting and rated at 32A. This connector features a receptacle with an outer helix, making it suitable for harsh environments and ensuring reliable performance in wet or dusty conditions. It is typically used in industrial and outdoor applications where robust, waterproof connectivity is required.
(Ø) 46mm
Cable Ø (max.) 15mm
Cable Ø range 13 - 15 mm
Cable Ø up to 13mm
Case material Polyamide 6.6
Connection Screws
Connection angle 180°
Connector type Socket, straight
Contact material Brass nickel plated
Cross section 2.5 -4mm²
Cross-section range 4 mm² (max)
Insulation resistance
> 5MΩ
IP rating IP68
Length 127mm
Manufacturer part # PX0921/02/S
max. cross section 4mm²
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute 1 Receptacle with outer helix
Misc Attribute 2 PX0921/02/S
Nominal current 32A
Nominal current - rounded value 32A
Nominal current (details) 32A
Nominal voltage 600V
Nominal voltage (details) 600V
Number of pins 2
Pins 2
RoHS-compliant Yes
Series PX
Temperature range -40 - +85°C
Total no. of pins 2
Type Bullet connector
