Block EB-2724-010-0 RCCB 24V DC 1A 1 Output Elektr. Schutzschalter

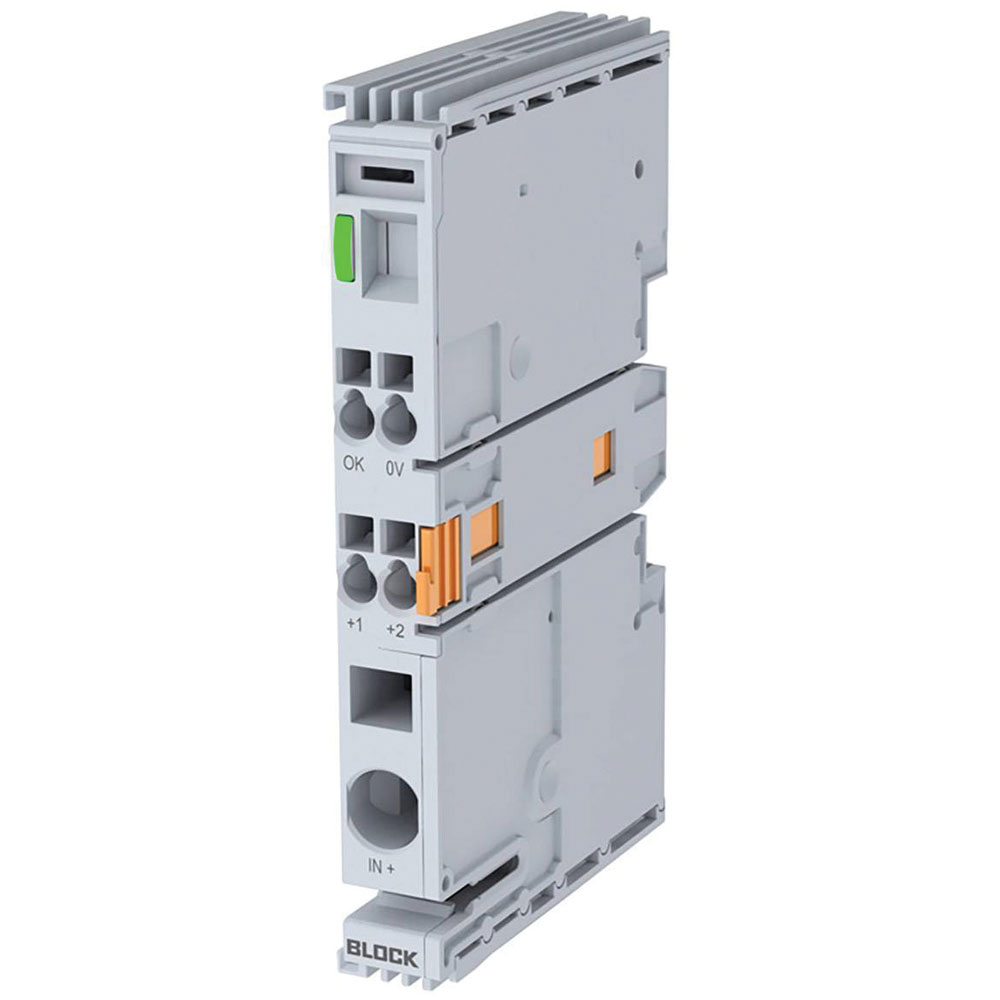

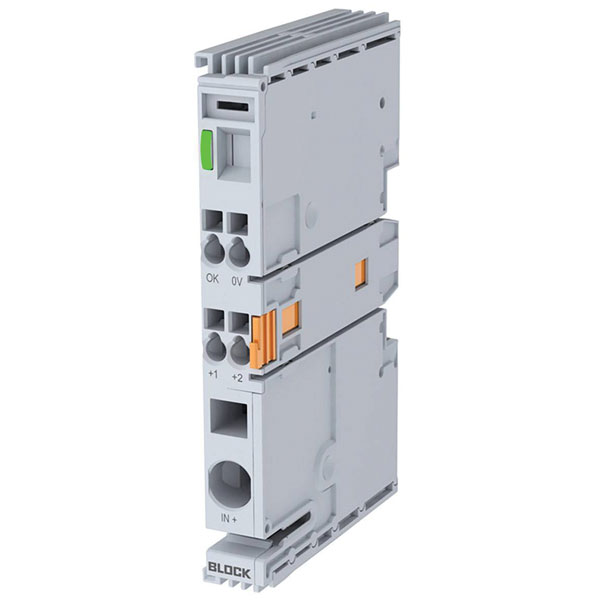

Image Representative of Range

Block EB-2724-010-0 RCCB 24V DC 1A 1 Output Elektr. Schutzschalter

Block
Standard range
Order Code:

01-6345

Brand: Block MPN: EB-2724-010-0
Qty Unit Price (Ex VAT)
1+ £30.61
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
20 in stock, despatched in 4 working days

The Block EB-2724-010-0 is a DIN rail power supply unit designed for industrial applications, providing 24 V DC output at 1 A. This RCCB features one output and is suitable for safe and efficient electrical protection. It is ideal for use in industrial control panels and automation systems.
Type RCCB
Connection Spring-loaded terminal
Dim (L x W x H) 64 x 12 x 99 mm
Efficiency 99%
Height 99mm
Input Voltage 18 - 30V DC
Input voltage (max.) 30V DC
Inputs 1
IP rating IP20
Length 64mm
Manufacturer part # EB-2724-010-0
Max. output current 1A
Max. temperature 70°C
Min. input voltage 18V DC
Min. temperature -25°C
Misc Attribute EB-2724-010-0
MTBF 500000h
No. of outputs 1
Nominal input voltage 24 V/DC
Output current (max.) - rounded 1A
Output voltage 24V DC
Output voltage (max.) 30V DC
Output voltage (min.) 18V DC
Output voltage (nominal) 24V DC
Phases 1
Weight 39g
Width 12mm
