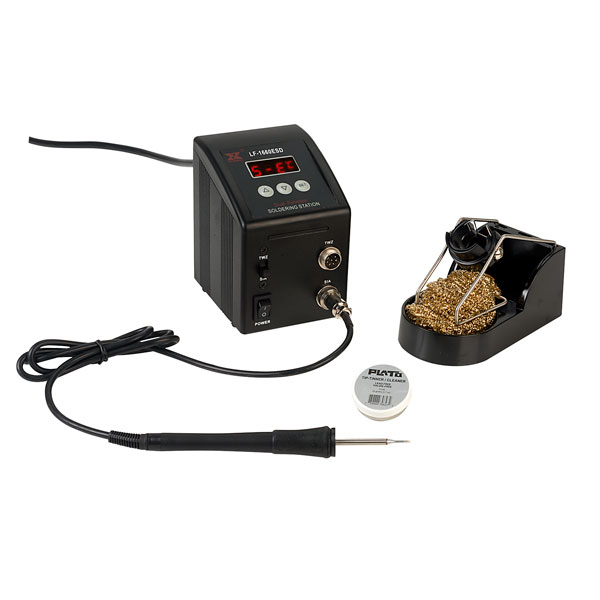

The Xytronic LF-1660ESD Temperature Controlled Soldering Station has a digital temperature indicator, detachable 70W soldering iron and a Set-and-Forget temperature control that allows selection of a soldering temperature between 100 and 480°C (212 to 896°F). The station is fitted with two front panel sockets, one for the soldering iron and one for an optional (not included) SMD tweezer. A slide switch selects between the two outputs.
The set is comprised of an LF-1660ESD base station, soldering iron and soldering iron stand, UK power cable and instruction manual.
- ESD safe
- Microprocessor controlled circuitry
- Detachable soldering iron with heat-resistant cable and 7-pin locking plug
- Simple fit soldering iron tips: simply pull the tip out and push in another
- Ideal for lead-free soldering
- Energy-saver mode reduces temperature to 100°C after 10 minutes of inactivity
- Automatic mains power switch-off after 20 minutes
- Temperature adjustment lockout prevents unauthorised change
- Low voltage soldering iron output for safety
- Spike-free circuitry for safe soldering of sensitive devices
- Detachable IEC type AC power cable with UK 13A plug
- Earth jack for connection of antistatic wrist strap
- Soldering iron stand with 20g low abrasive brass tip tinner/cleaner
- Xytronic type: LF-1660ESD (without SMD tweezer and tweezer stand)
Click here for a range of suitable soldering tips
| Analogue / Digital |
Digital |
| Power Output |
70W |
| Number of Outputs |
2 |
| Temperature Min |
100°C |
| Temperature Max |
480°C |
| Iron Voltage |
24V |
