Wieland 56.704.7855.0 fasis Tier DIN Block WKFN 4 E/D/SL/35 32A Grey/Green-yello

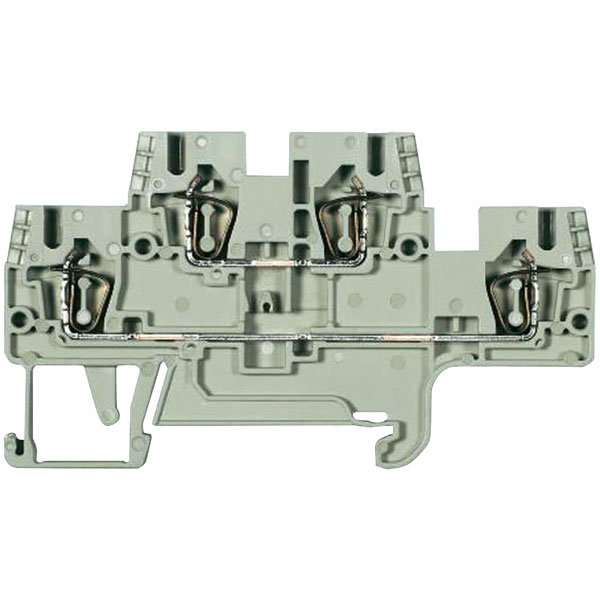

Wieland's grey fasis multi-tier DIN block WKFN 4 E/D/SL/35 is a terminal block for mounting onto a TS 35 DIN rail and has been given an approved ATEX rating for use in various zones. The secure and maintenance-free tension spring clamp remains simple to operate via a standard screwdriver which can be held securely in the terminal for optimal handling while connecting wires.

The block has a 32A current rating, 500V rated voltage and is valid for fine-stranded wires with a cross section of 0.13–4mm², along with solid/stranded wires with a cross section of 0.13–6mm².

• Rated to Ex e I/II Ex II 2GD IM2
• 6 x 90 x 48mm (W x L x H)
• 11mm wire strip length
• Vertically connected
• Connect with or without ferrules
• Easy to wire front connection
• 2 levels - 4 clamps
• PA 666 insulating housing
• Manufacturer's part 56.704.7855.0
