Trumeter APMDCV72-NTR Digital Panel Meter

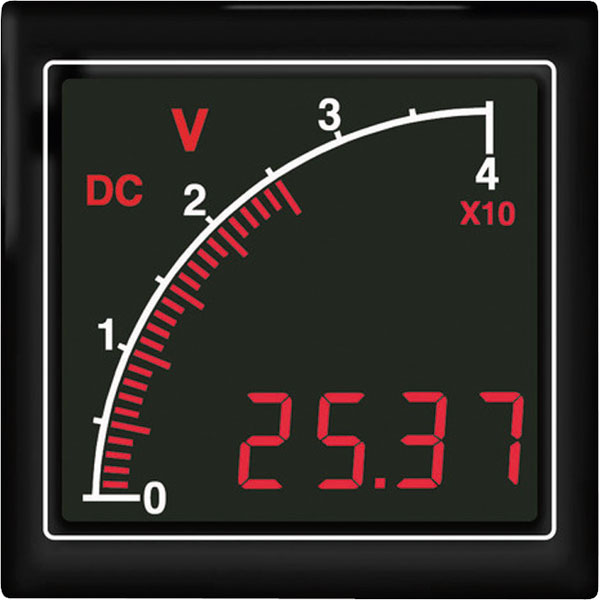

This APM analogue effect digital panel meter from Trumeter is both unique and flexible. The panel meter is supplied in negative red, and has a curved 40 segment analogue display making it as easy to read as any other analogue moving coil with the added precision of a 3¾ digit display making measurements simple and reliable.

• Digit height: 12mm
• Dimensions: (W x H x D) 72 x 72 x 70mm
• 4 digit display and curved bargraph display
• Reading, DCV accuracy ±2%. Measures to 2 decimal places
• Measured VOLTAGE input from 6 to 300V DC. A minimum voltage of 6V DC is required
• Separate 12 or 24VDC power required
• Measurement connection using a 4-way 7.5mm pitch screw terminal block
• Externally powered optional backlight in Negative Red
• Type (manufacturer type): APMDCV72-NTR DC Volts
