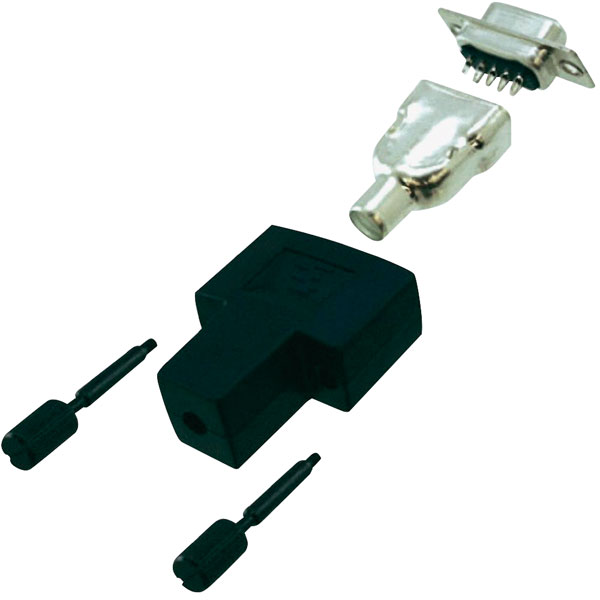

TE 1571654-4 Amplimite D-sub Kit Female Solder Cup Shielded Gold 9P Black

TE Connectivity female shielded D-sub connector and cover in plastic, from their Amplimite series.

• Product type: D-sub socket with cover
• Colour: Black
• Number of positions: 9
• Contact plating: Gold Flash
• Contact base material: Brass
• Housing material: PVC
• UL flammability rating: UL94 V-0
• Mounting orientation: Vertical/180°
• Solder tail contact plating material: Tin
• Wire/cable type: Round Jacketed Cable
• Termination method to wire/cable: Solder
• Insulation diameter: 7.2mm (.283 in )
• PCB mount retention type: None
• Mating connector lock: Yes
• Mating connector lock type: Jackscrews
• Grade: Standard
• Shell size: 1
• Wire range: .5 -.6mm² ( 20 AWG )
• Contact configuration: Solder Cup
• Insert material: PBT
• Shell material: Steel
• Shell plating material: Tin
• Shell type: Full Metal Shell
• Shield plating material: Tin
• Shielded: Yes
• Cable insulation diameter: 7.2mm (.283 in )
• Preloaded: Yes
• Insert flammability rating: UL 94V-0
• Packaging quantity: 1
• Mftrs part no. 1571654-4
