Takamisawa FTR-F1 CD 012 pieceB Relay 12V DC 5A 2 Change-Overs 1 piece

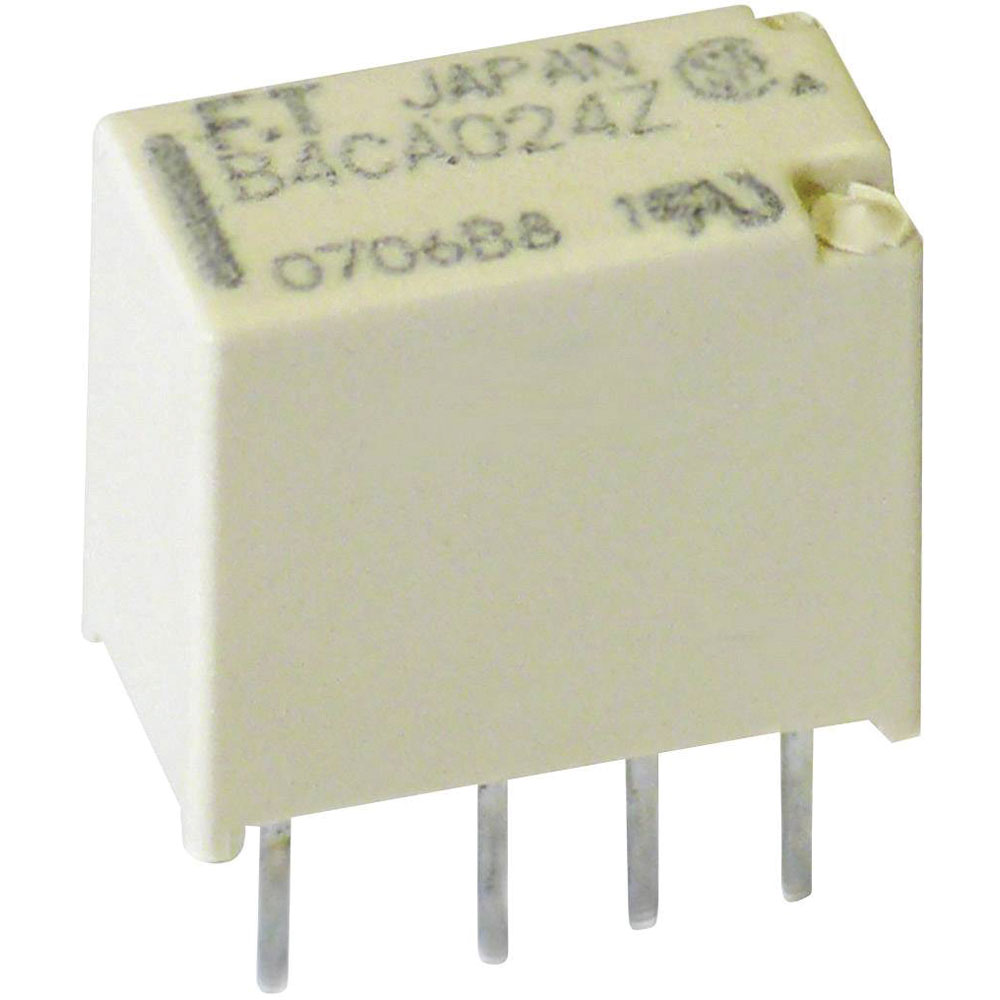

Image Representative of Range

Takamisawa FTR-F1 CD 012 pieceB Relay 12V DC 5A 2 Change-Overs 1 piece

Takamisawa
Standard range
Order Code:

10-7412

Brand: Takamisawa MPN: FTR-F1 CD 012 EAN-13: 2050000149184
Qty Unit Price (Ex VAT)
1+ £1.55
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
70 in stock, despatched in 4 working days

The Takamisawa FTR-F1 CD 012 is a PCB relay with a nominal voltage of 12 V DC and can handle current up to 5 A with two change-over contacts. This miniature relay is suitable for use in compact electronic applications due to its small size. It is commonly used in electromechanical devices, offering reliable performance for switching purposes on printed circuit boards.
Height 16.5mm
Length 29mm
Switching Current 10mA
Type PCB relay
Width 12.8mm
Coil nominal voltage 12V DC
Connection Solder pins
Contact material Gold plated silver alloy
Contact resistance (At 1 A/6 V/DC) new condition 100mΩ
Contact type 2 change-overs
Control mode monostable, 1 coil
Creepage distance (coil/clips) 8mm
Dim (L x W x H) 29 x 12.8 x 16.5 mm
Fall time 5ms
Insulation resistance (500 V/DC) ≥ 1000MΩ
Max. temperature +75°C
Min. pick-up voltage 9V DC
Min. temperature -40°C
Misc Attribute 1 FTR-F1 CD 012
Misc Attribute 2 FTR-F1 CD 012
Nominal voltage (details) 12V DC
Power 400mW
Resistance (coil) 360Ω
Response time 15ms
RoHS-compliant Yes
Switching capacity 125VA
Switching current (max.) 5A
Switching voltage
5 V/DC / 300 V/DC/400V DC
Test voltage (1 min) 5000V AC
Voltage range 9 - 22.2V DC
