Stäubli 233150-20 SEB4-F63 safety jack socket 4mm gr/yel 1 piece

Staubli
Order Code:

00-0339

Brand: Staubli MPN: 23.3150-20 EAN-13: 2050000257018

Discontinued

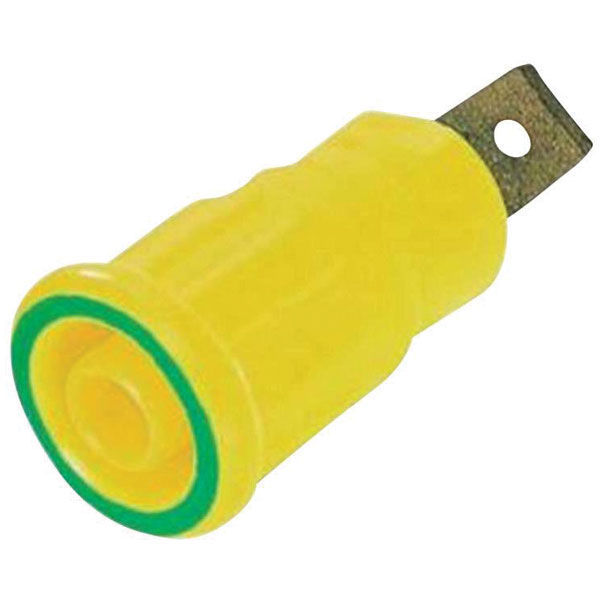

Insulated, rigid 4mm socket connector, with gold-plated contacts and a 1.9mm solder pin. Suitable for accepting spring-loaded 4mm plugs with rigid insulating sleeve. Socket made from brass. Push-fit mounting into cutout holes in plates or housings made of plastic, metal etc.
Type Socket
(Ø) 14.5mm
Connector type Socket, built-in
Contact material Gold plated
Dim (Ø x L) 14.5 mm x 33 mm
Insulation type Insulated
Jack diameter 4mm
Length 33mm
Manufacturer part # 23.3150-20
Material (details) Gold-plated brass
Misc Attribute SEB4-F6,3
Nominal current 32A
Nominal current - rounded value 32A
Nominal current (details) 32A
Nominal voltage 1000V
Nominal voltage (details) Contact-safe 1000 V/ CAT III
RoHS-compliant Yes
Temperature range -40 - +80°C
