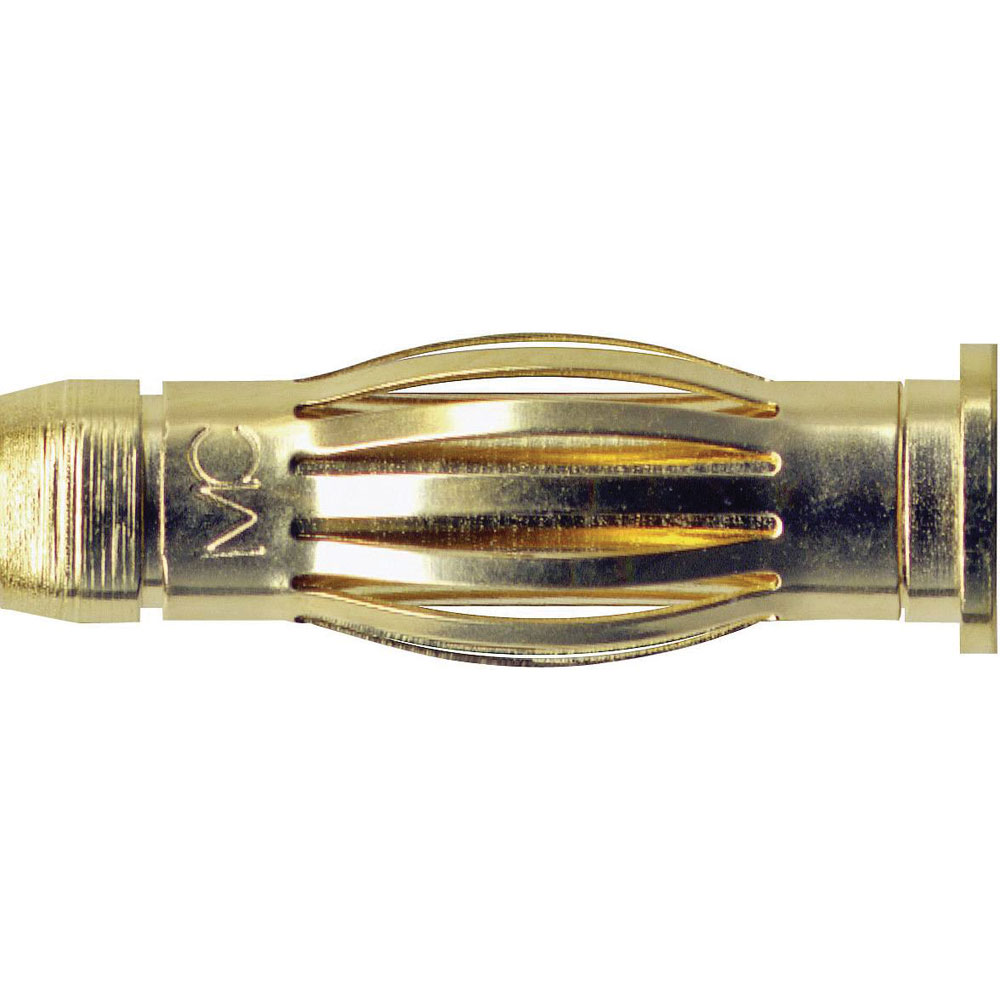

Stäubli 221054 SA404 edge connector plug straight 4mm brass pin 1 piece

The Stäubli SA404 Edge Connector is a premium straight plug designed for robust electrical connections. With a 4 mm pin diameter, this connector is made from gold-plated brass, ensuring superior conductivity and longevity. It supports a nominal current of 50A and operates efficiently within a temperature range of up to +150°C. The SA404 is RoHS-compliant and features a screw connection, making it an ideal choice for various demanding applications.

Type	Plug
(Ø)	4mm
Connection	Screws
Connector type	Plug, straight
Contact material	Brass gold plated
Cross section	4mm
Dim	(Ø) 4 mm
Factory colour	Brass
Insulation type	Not insulated
Manufacturer part #	22.1054
Material (details)	Gold-plated brass
Misc Attribute	SA404
Nominal current	50A
Nominal current - rounded value	50A
Nominal current (details)	50A
Pin Ø	4mm
RoHS-compliant	Yes
Temperature Range	+150°C
