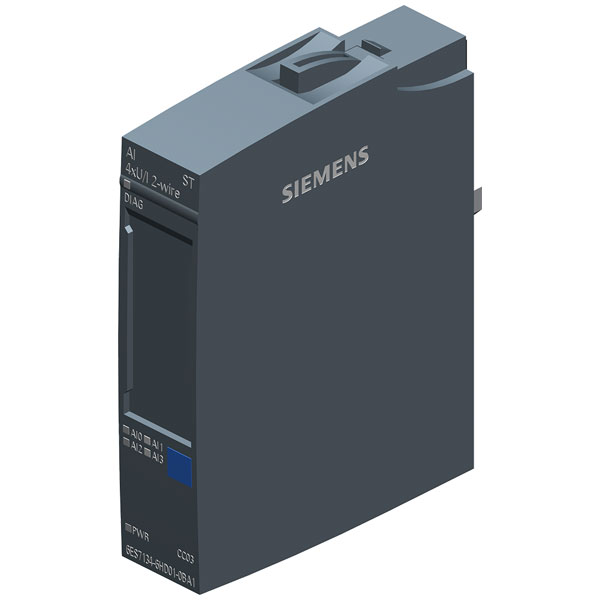

Siemens 6ES7134-6HD01-0BA1 SIMATIC ET 200SP AI module AI 4xU/I 16-bit

The Siemens 6ES7134-6HD01-0BA1 PLC input module is a reliable component for digital input processing in automation systems. It features high-speed data processing and robust construction, making it ideal for industrial environments. This module is typically used in conjunction with Siemens programmable logic controllers for efficient control and monitoring applications.

Analogue inputs configurable	TRUE
Analogue outputs configurable	N/A
Appendant operation agent (Ex ia)	FALSE
Appendant operation agent (Ex ib)	FALSE
Certified for UL hazardous location class I	N/A
Certified for UL hazardous location class II	N/A
Certified for UL hazardous location class III	N/A
Certified for UL hazardous location division 1	N/A
Certified for UL hazardous location division 2	N/A
Certified for UL hazardous location group A (acetylene)	N/A
Certified for UL hazardous location group B (hydrogen)	N/A
Certified for UL hazardous location group C (ethylene)	N/A
Certified for UL hazardous location group D (propane)	N/A
Certified for UL hazardous location group E (metal dusts)	N/A
Certified for UL hazardous location group F (carbonaceous dusts)	N/A
Certified for UL hazardous location group G (non-conductive dusts)	N/A
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	58mm
Explosion safety category for dust	None
Explosion safety category for gas	ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible	TRUE
Front built-in possible	TRUE
Height	73mm
Input signal, configurable	TRUE
Input, current	TRUE
Input, resistance thermometer	FALSE
Input, resistor	FALSE
Input, thermocouple	FALSE
Input, voltage	TRUE
IO link master	FALSE
Misc Attribute	6ES7134-6HD01-0BA1
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Mobile communications standard 3G (UMTS)	FALSE
Module type	Analog
Number of Analogue Inputs	4
Number of Analogue Outputs	0
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Output signal configurable	N/A
Output, current	N/A
Output, voltage	N/A
Package depth	23mm
Package height	77mm
Package width	65mm
Performance level according to EN ISO 13849-1	N/A
Power Consumption	N/A
Product colour	Multicolour
Purpose	System power
Rack-assembly possible	TRUE
Radio standard Bluetooth	FALSE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Radio standard WLAN 802.11	FALSE
Resolution of the analogue inputs	16Bit
Resolution of the analogue outputs	N/A
Series	ET 200
SIL according to IEC 61508	N/A
Suitable for rail mounting	TRUE
Suitable for safety functions	FALSE
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	19.2 - 28.8V
Supporting protocol for ASI	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherCAT	N/A
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for LON	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for other bus systems	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for TCP/IP	FALSE
System accessory	TRUE
Type	PLC input module
Type of electric connection	Plug-in connection
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	FALSE
Weight	0
Width	15
