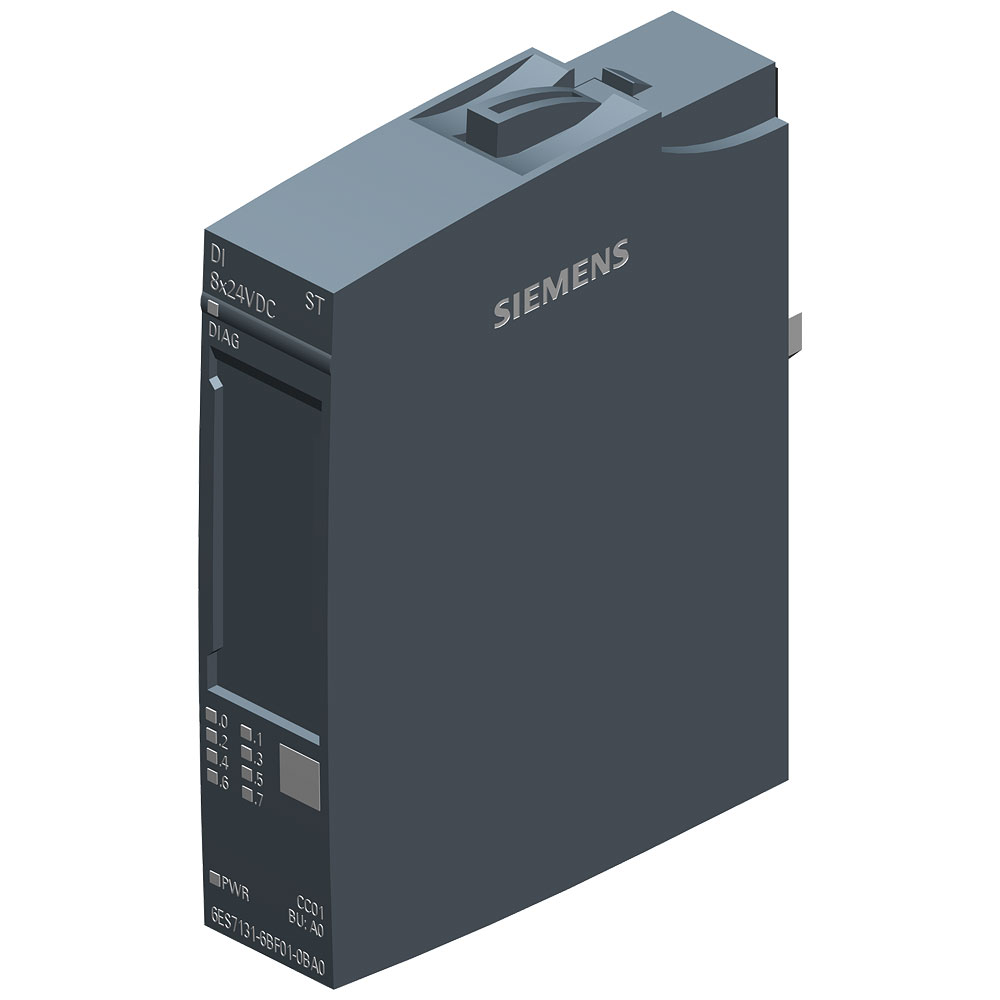

Siemens 6ES71316BF010BA0 SIMATIC ET 200SP digital input module DI 8x24VDC

The Siemens 6ES7131-6BF01-0BA0 is a PLC input module designed for use with 24 V DC inputs. Known for its reliability and efficiency, it helps streamline processes in industrial automation systems. Typically used in manufacturing and process control environments, it ensures precise data acquisition from sensor inputs.

Appendant operation agent (Ex ia)	FALSE
Appendant operation agent (Ex ib)	FALSE
Certified for UL hazardous location class I	N/A
Certified for UL hazardous location class II	N/A
Certified for UL hazardous location class III	N/A
Certified for UL hazardous location division 1	N/A
Certified for UL hazardous location division 2	N/A
Certified for UL hazardous location group A (acetylene)	N/A
Certified for UL hazardous location group B (hydrogen)	N/A
Certified for UL hazardous location group C (ethylene)	N/A
Certified for UL hazardous location group D (propane)	N/A
Certified for UL hazardous location group E (metal dusts)	N/A
Certified for UL hazardous location group F (carbonaceous dusts)	N/A
Certified for UL hazardous location group G (non-conductive dusts)	N/A
Country of origin	Germany
Degree of protection (IP)	IP20
Depth	58mm
Digital inputs configurable	TRUE
Digital outputs configurable	N/A
Explosion safety category for dust	None
Explosion safety category for gas	ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible	TRUE
Fitting type (details)	Front Mounting rail mounting rack mounting.
Front built-in possible	TRUE
Height	73mm
Input current at signal 1	2.5A
IO link master	FALSE
Misc Attribute	6ES7131-6BF01-0BA0
Mobile communication standard 2G (GSM)	false
Mobile communication standard 3G (UMTS)	false
Mobile communication standard GPRS	false
Mobile communications standard 3G (UMTS)	FALSE
Number of Digital Inputs	8
Number of digital inputs (max.)	8
Number of Digital Outputs	0
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces other	0
Number of HW-interfaces parallel	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces wireless	0
Number of interfaces PROFINET	0
Output Current	N/A
Package depth	23mm
Package height	77mm
Package width	65mm
Performance level according to EN ISO 13849-1	N/A
Permitted voltage at input	-30 - 30V
Permitted voltage at output	N/A
Power Supply Type	Indoor
Product colour	Multicolour
Quick installation guide	Yes
Rack-assembly possible	TRUE
Radio standard Bluetooth	FALSE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Radio standard WLAN 802.11	FALSE
Series	ET 200
Short-circuit protection, outputs available	N/A
SIL according to IEC 61508	N/A
Suitable for rail mounting	TRUE
Suitable for safety functions	FALSE
Supply voltage AC 50 Hz	N/A
Supply voltage AC 60 Hz	N/A
Supply voltage DC	19.2 - 28.8V
Supporting protocol for ASI	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherCAT	N/A
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for LON	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for other bus systems	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for TCP/IP	FALSE
System accessory	TRUE
Time delay at signal change	0.05 - 20ms
Type	PLC input module
Type of digital output	None
Type of electric connection	Plug-in connection
Type of output voltage	N/A
Type of voltage (input voltage)	DC
Voltage type (supply voltage)	DC
Wall mounting/direct mounting	FALSE
Weight	0
Width	15
With optical interface	FALSE
