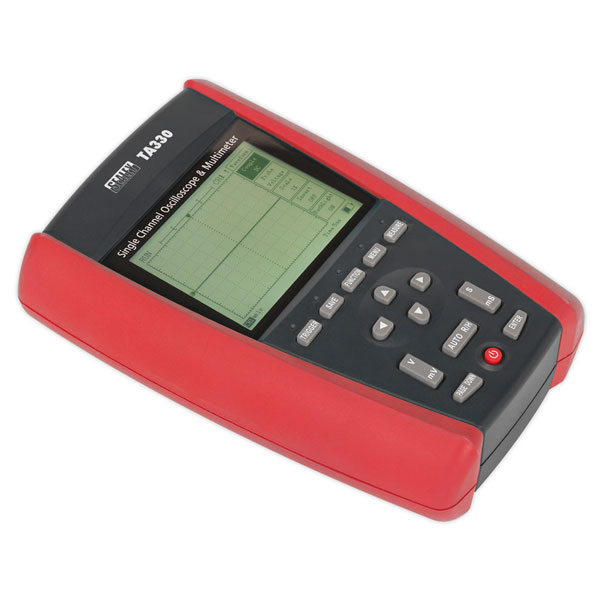

Sealey TA330 Hand-Held Automotive Single Channel Oscilloscope & Multimeter

Sealey
Order Code:

89-8144

Brand: Sealey MPN: TA330 EAN-13: 5051747631038

Discontinued


Simple to use oscilloscope that allows observation of constantly varying signals from vehicle components and sensors. With a bandwidth of 20MHz the unit is suitable for detecting CAN signals on modern vehicles. Functions include data hold, record, auto-ranging and USB interface for downloading data to PC. This versatile unit also has a built-in multimeter with large digit display and bar graph. Supplied with 3-pin UK and 2-pin European charger leads.

Model NoTA330
Nett Weight:700g
Display:320 x 240 pixel with LED Backlight
Bandwidth:20MHz
Sample Rate:Maximum 80MSa/s
Input Impedance:1MΩ
Maximum Input:600V
Memory Capacity:6 Waveforms
Trigger Mode:Auto, Normal, Single
Multimeter Modes:Voltage DC & AC, Current DC & AC, Resistance, Capacitance, Continuity, Diode
Battery:3.7V Li-Poly
Operating Time:3hr with Backlight
Size:211 x 140 x 55mm
Weight:700g
PC Compatibility:Windows 98, ME, 2000, XP, Vista, 7

Type Oscilloscope and multimeter
Current 600V
